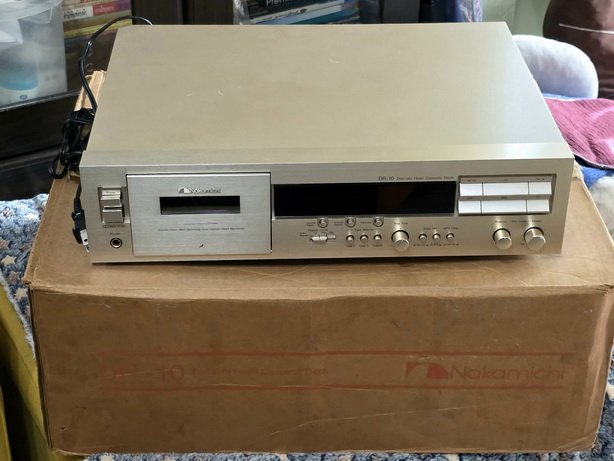

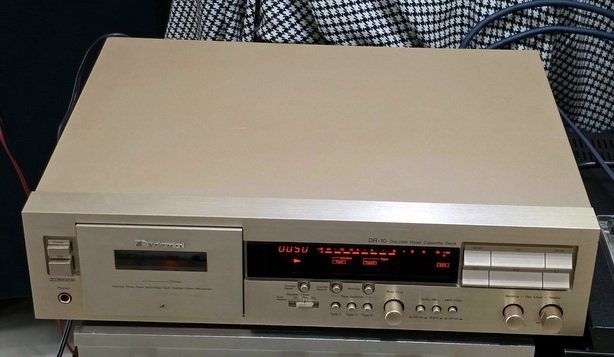

ขายเครื่องเล่นเทป NAKAMICHI DR10 ระบบ3หัวเทป สวยมากพร้อมกล่องตรงรุ่น เสียงดีมาก Made in Japan
ขายเครื่องเล่นเทป NAKAMICHI DR10 ระบบ3หัวเทป สวยมากพร้อมกล่องตรงรุ่น เสียงดีมาก Made in Japan

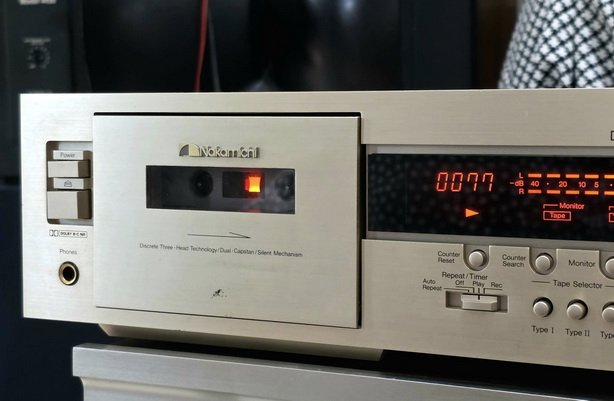

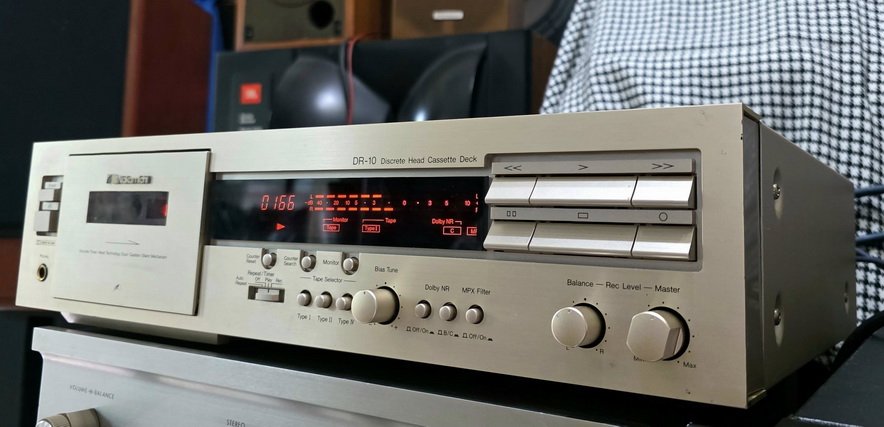

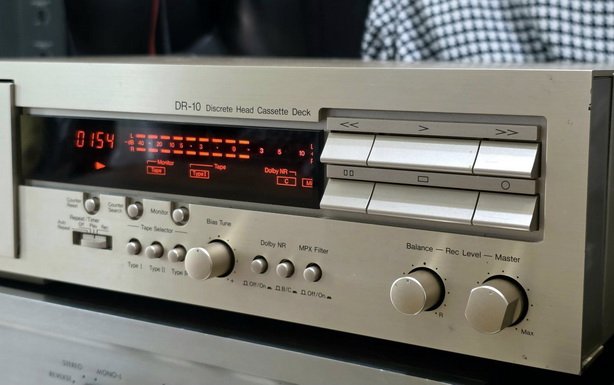

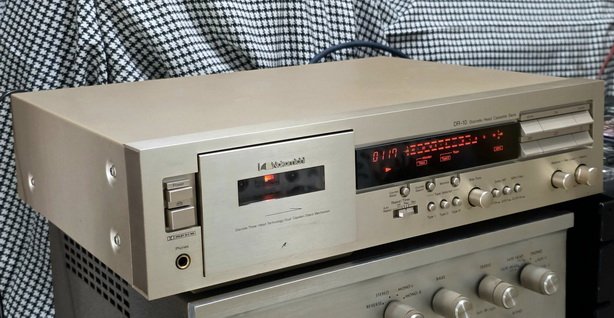

Nakamichi DR-10
¥ 98,000 (around 1999)
Commentary

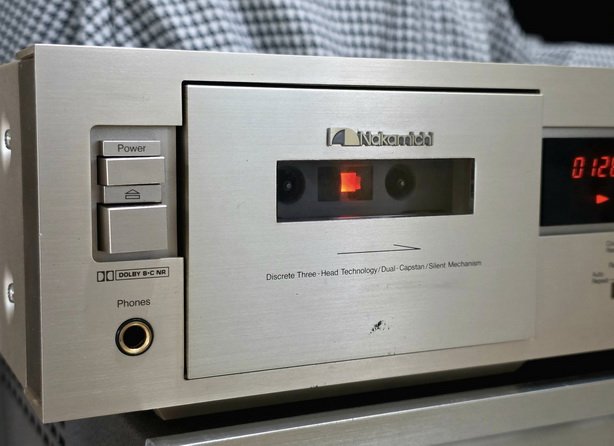

A 3-head cassette deck developed using Nakamichi's cassette deck technology.

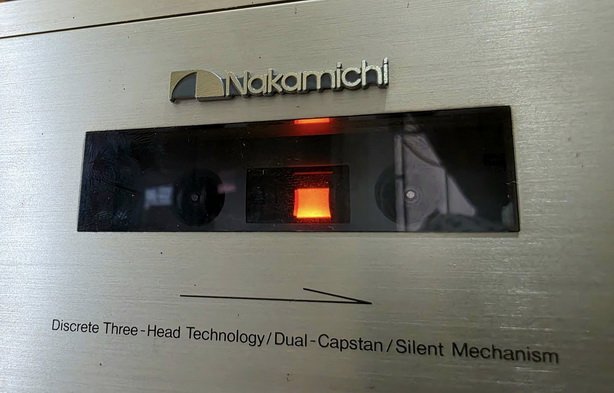

The head section uses a discrete three head system in which the three recording / reproducing /
erasing heads are completely independent from each other in structure.
The discrete 3-head method allows for extremely precise magnetic and mechanical azimuth
adjustment, and also allows for a sufficient distance between the recording head and the
reproducing head to prevent harmful magnetic interference.
The recording and reproducing heads use an inline recording head with a crystal-core,
which is also used in the DRAGON.
In particular, the playback head has a narrow gap of 0.8 μ to achieve 21 kHz ultra-high-frequency
playback, and the head coil uses top-grade oxygen-free copper (OFC) with no signal
transmission loss to expand the range and dynamic range.
The mechanism uses a closed-loop dual capstan system to achieve optimal tape tension
and stable tape travel.
In addition, the DR-10 achieves a more precise transport mechanism by adding a unique
technique to this. First, the diameters of the capstan on the supply side and the capstan on the
take-up side are slightly changed to avoid overlapping of the flutter, thereby suppressing
harmful tape vibrations. In addition, the DR-10 is equipped with a tape pad lifter to control tape
movement with only two capstan, thereby reducing modulation noise that makes sound muddy
and contributing to a longer life of the head.
The audio circuit uses dual-mono construction to eliminate channel interference, and uses a
DC amplifier configuration that eliminates coupling capacitors that cause distortion.
The recording amplifier circuit is a pure A-class configuration, and 12 adjustment circuits
are installed in total to maximize the capacity of the tape. The reproducing amplifier circuit is
composed of only discrete elements and is integrated with the reproducing head assembly on
the transport side to eliminate transmission loss caused by cable routing.
Multi-regulated power supply system is adopted for the power supply section to eliminate
power interference between sections.

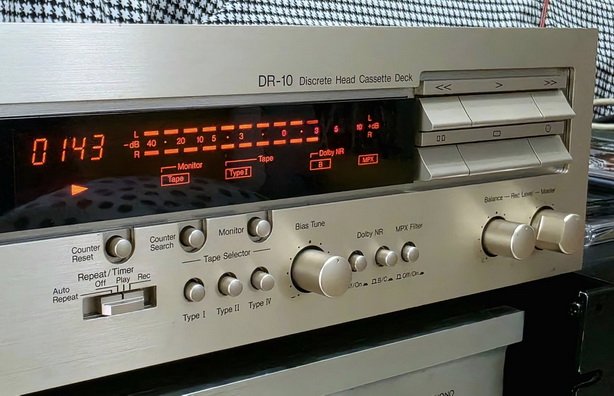

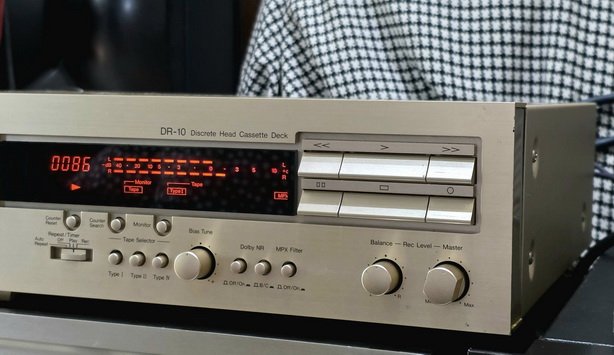

Equipped with bias fine adjustment volume.
A microprocessor controlled motor drive silent mechanism is employed.
Equipped with a Dolby B/C type noise reduction system.

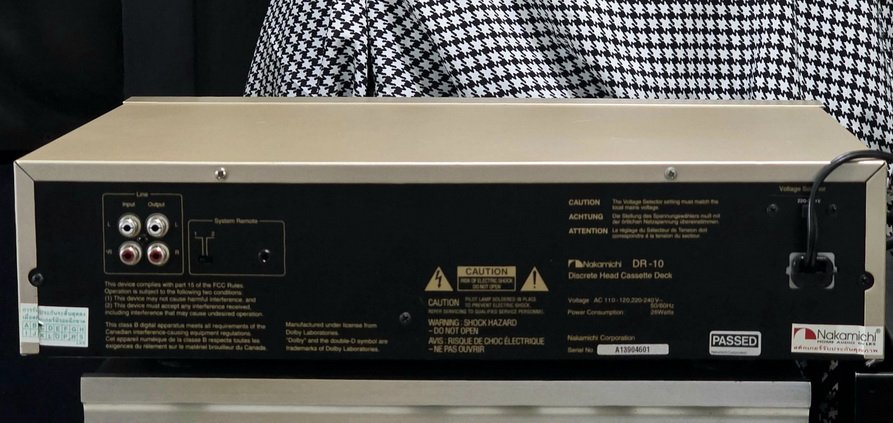

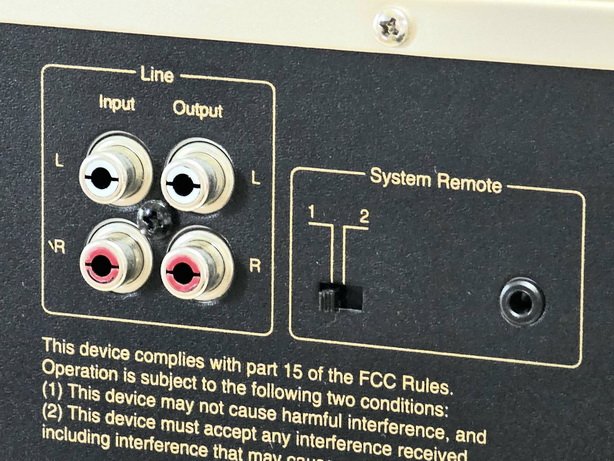

Equipped with headphone port and remote control port.

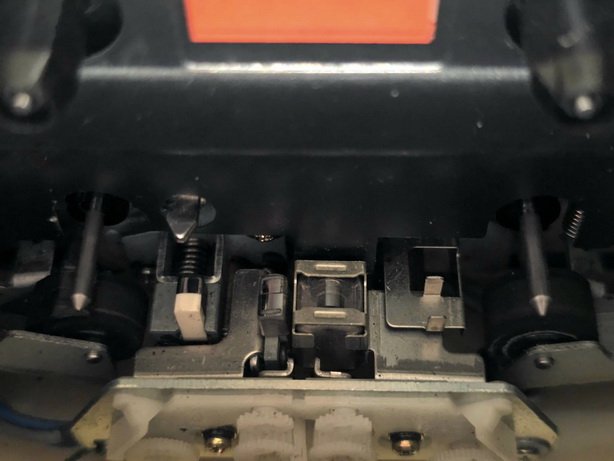

Each head Function of the tape pad lifter
Model Rating
Type Cassette deck
Heads 3 heads (1 erase, 1 record, 1 play)
Wow flutter ± 0.06% or less WTD Peak
± 0.035% or less WTD RMS
Frequency characteristic 20 Hz to 21 kHz ± 3 dB (recording level -20dB, TypeI, II, IVtape)
Signal-to-noise ratio Dolby B NRon : 66 dB or higher
Dolby C NRon : 72 dB or more
(400 Hz, 3% THD, IHF A-wtd RMS, TypeIVtape, 70 μ secEQ)
Overall strain rate 0.8% or Less (400 Hz, 0 dB, TypeIV)
1.0% or Less (400 Hz, 0 dB, TypeI/II)
Pwer 100 VAC, 50Hz/60Hz
Power consumption 23W
External dimensions Width 430x Height 100x Depth 320 mm
Weight Approx. 5.4 kg
ได้รับการโหวต ความน่าเชื่อถือในการซื้อ-ขายสินค้า จากสมาชิกทั้งหมด 17 ท่าน
