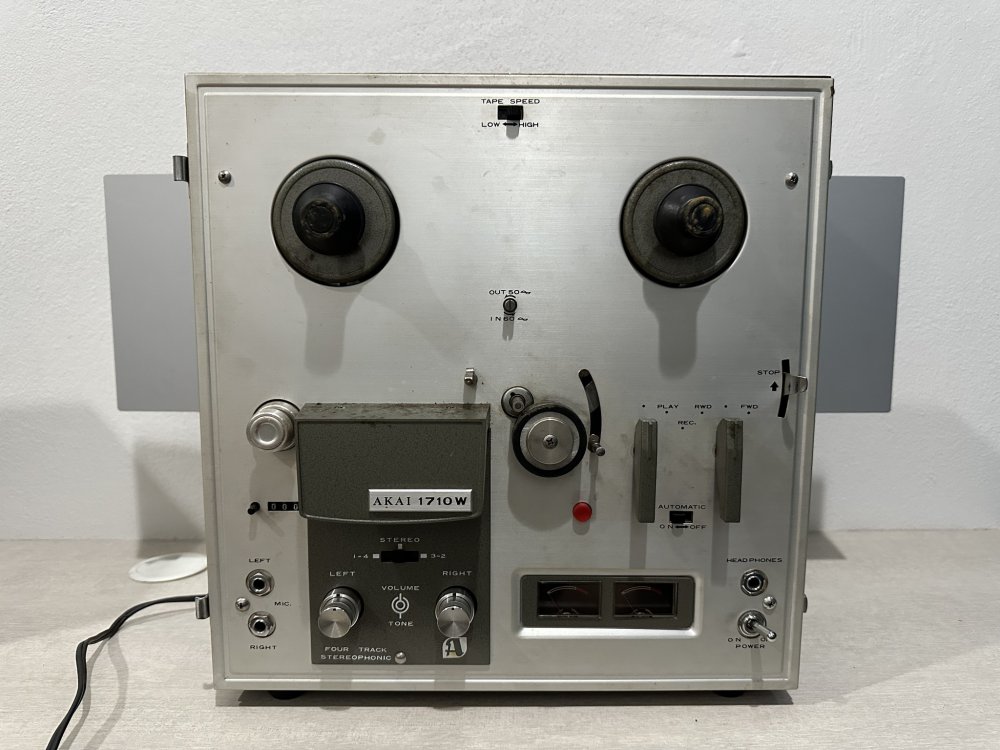

Specifications
Track system: 4-track, 2-channel, stereo/monaural system
Heads: 1 x record/playback, 1 x erase
Motor: 2 speed induction
Reel size: 3, 5 or 7 inch reel
Tape speeds: 1 7⁄8 3 3⁄4 7 1⁄2 ips
Wow and flutter: 0.18% (7 1⁄2 ips)
Frequency response: 40Hz to 15kHz (7 1⁄2 ips)
Signal to Noise Ratio: 50dB
Total harmonic distortion: 3%
Crosstalk: 43dB

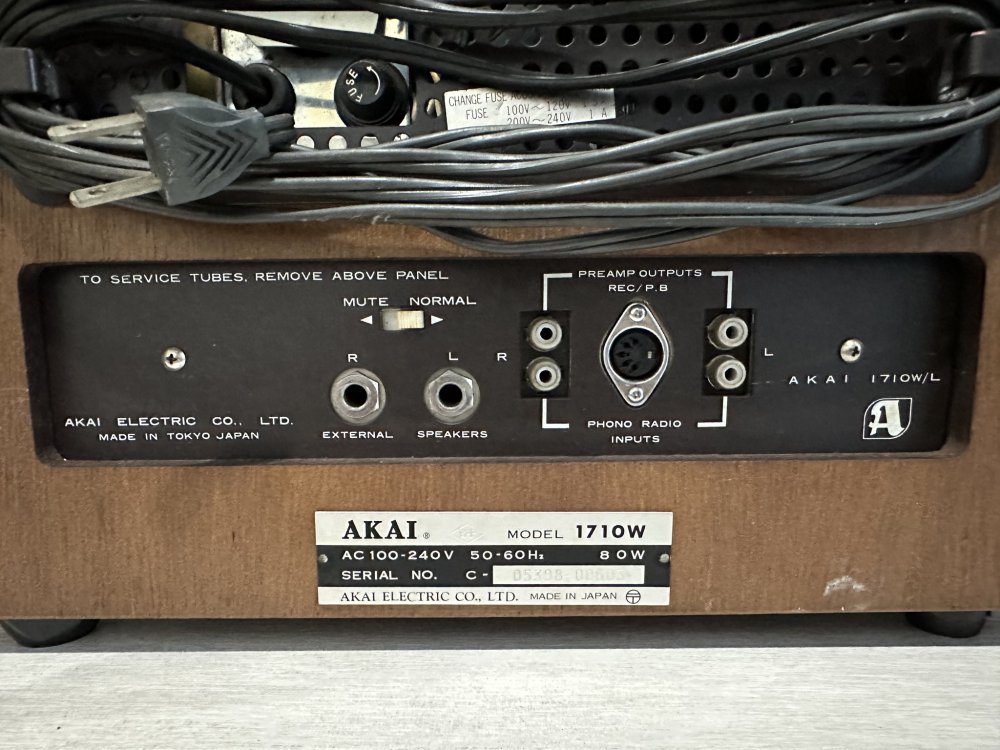

Input: 150mV (line), 20mV (DIN), 3mV (mic)
Output: 2.5V (line), 2.5V (DIN)
Output power: 4 watts
Semiconductors: 2 x 2SC650, 2 x 2SC458LG

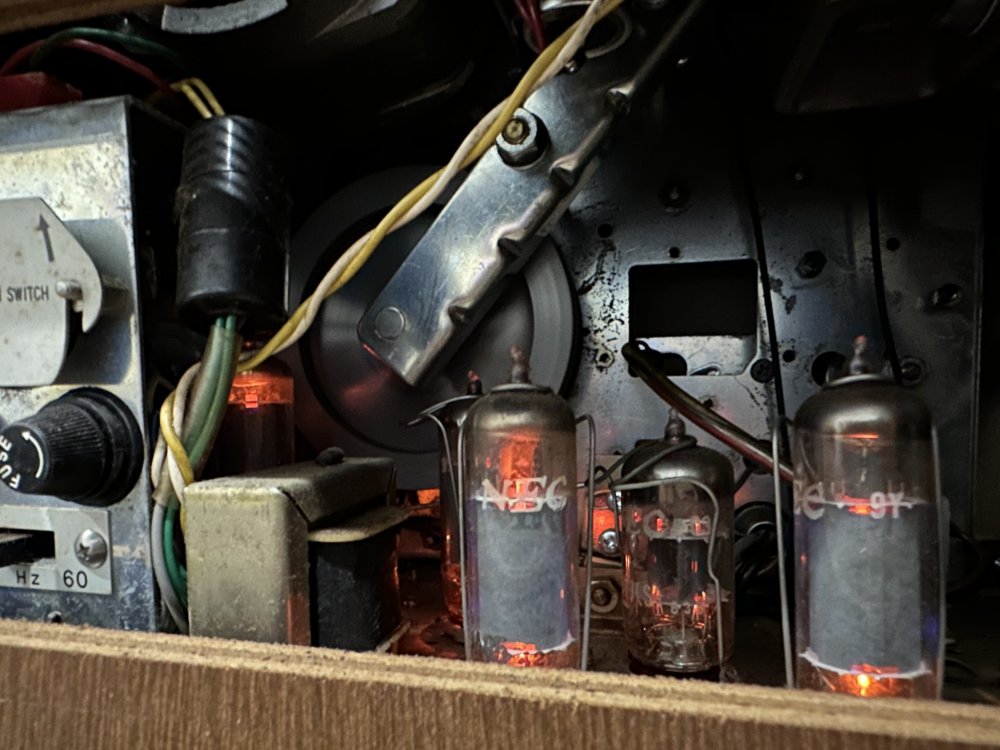

Valve complement: 1 x 12AT7, 2 x 6AR5, 1 x 6CA4
Dimensions: 360 x 345 x 190mm
Weight: 15kg
|
