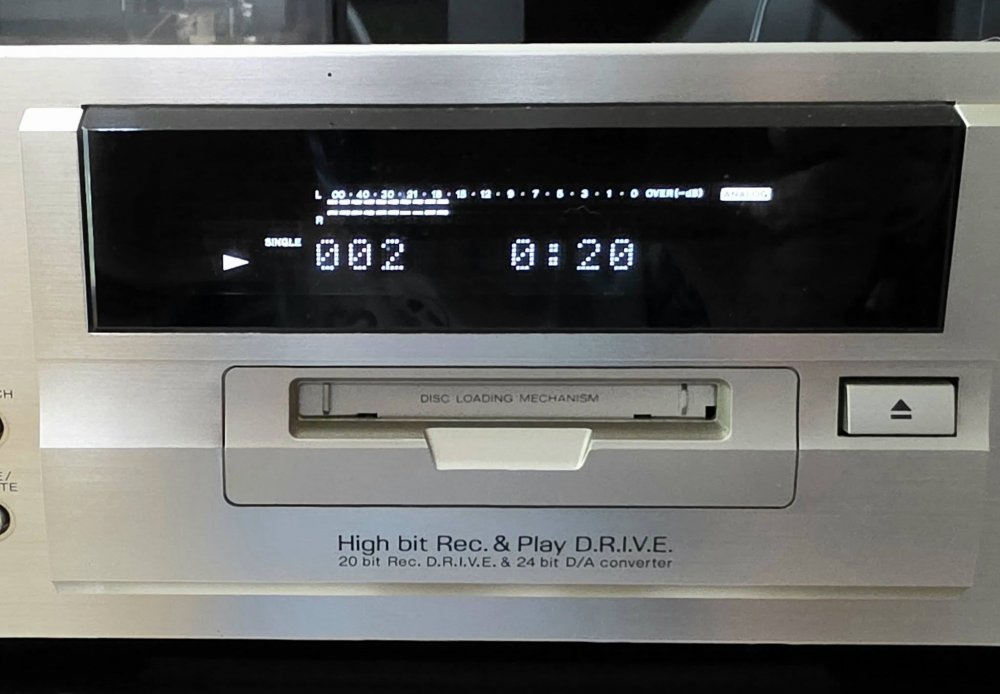

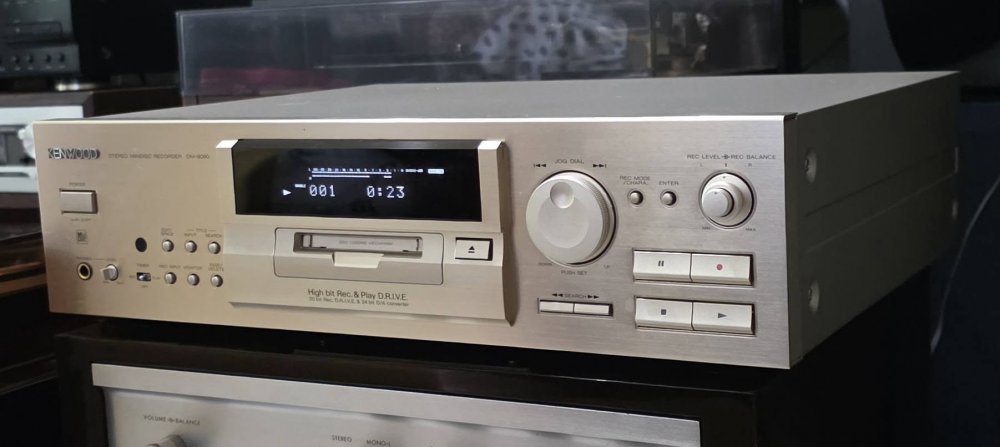

ขายเครื่องเล่นมินิดิสก์ KENWOOD DM-9090 รุ่น Top สภาพสวย เสียงดี หายาก Made in Japan
ขายเครื่องเล่นมินิดิสก์ KENWOOD DM-9090 รุ่น Top สภาพสวย เสียงดี หายาก Made in Japan
เสปคเครื่องและข้อมูลจากต่างประเทศ ตามนี้ครับ....

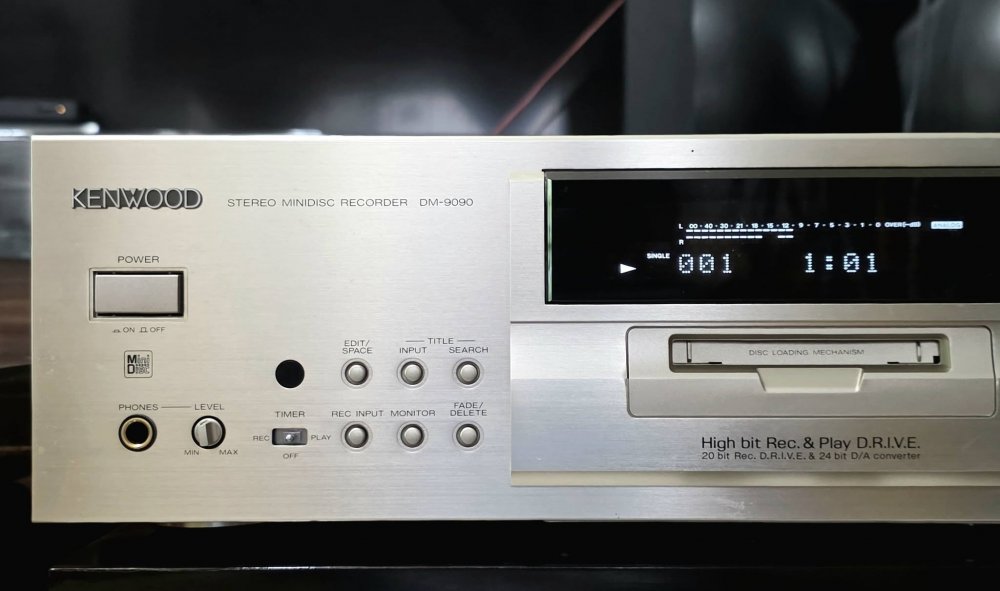

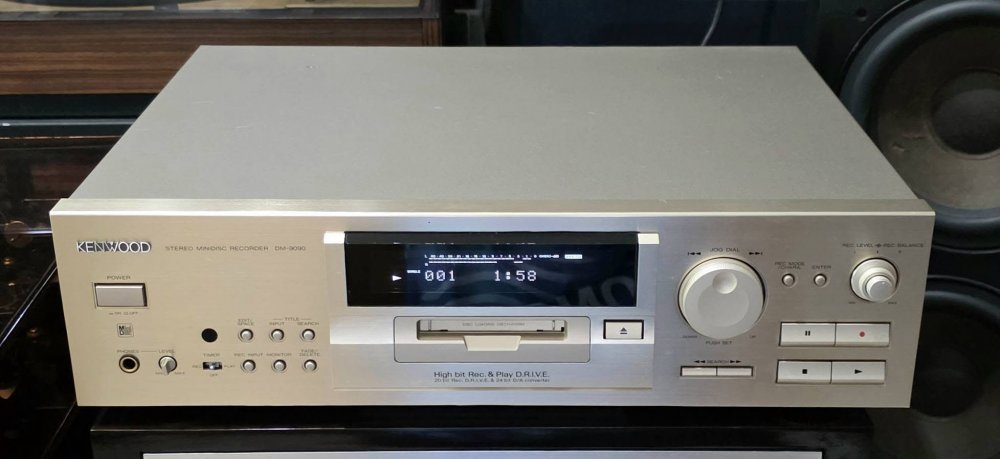

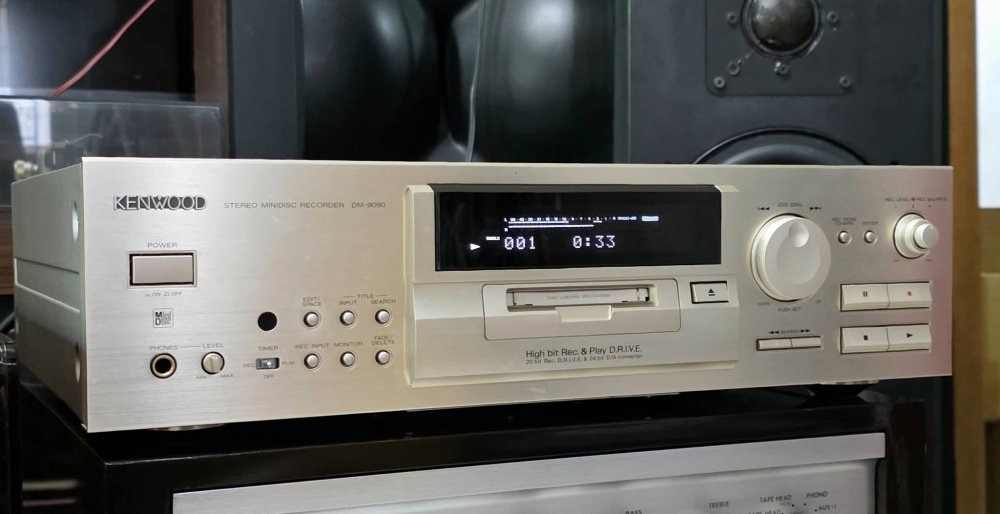

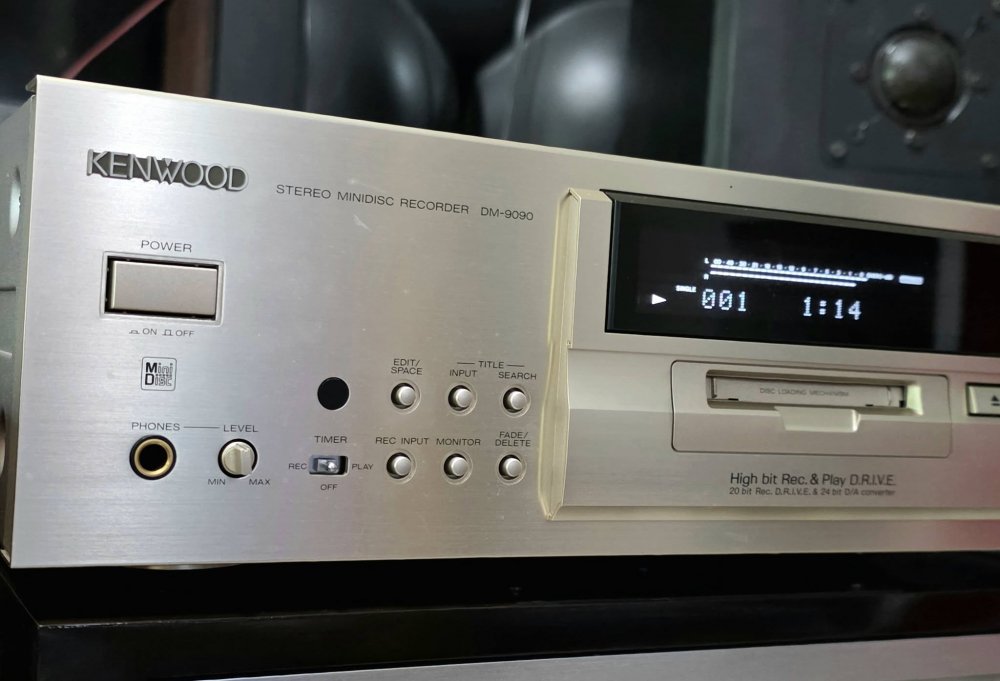

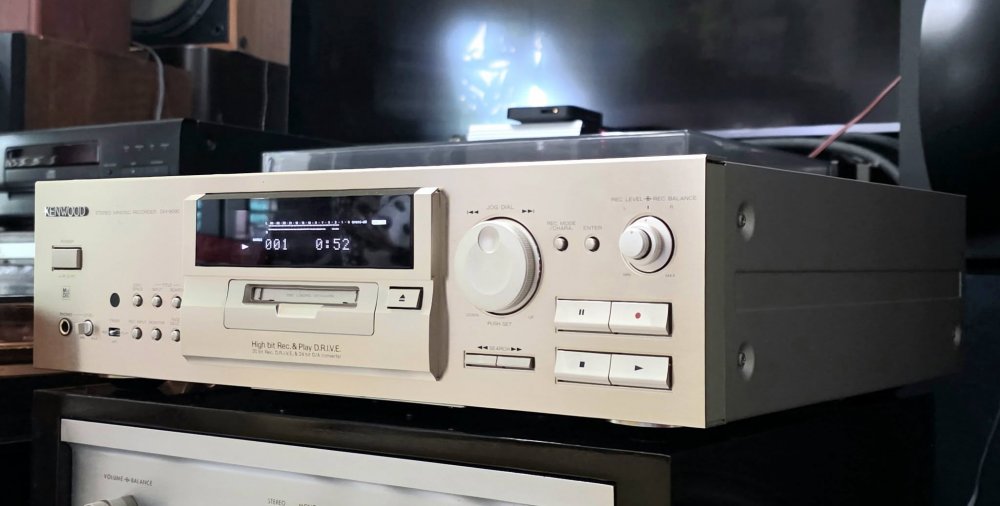

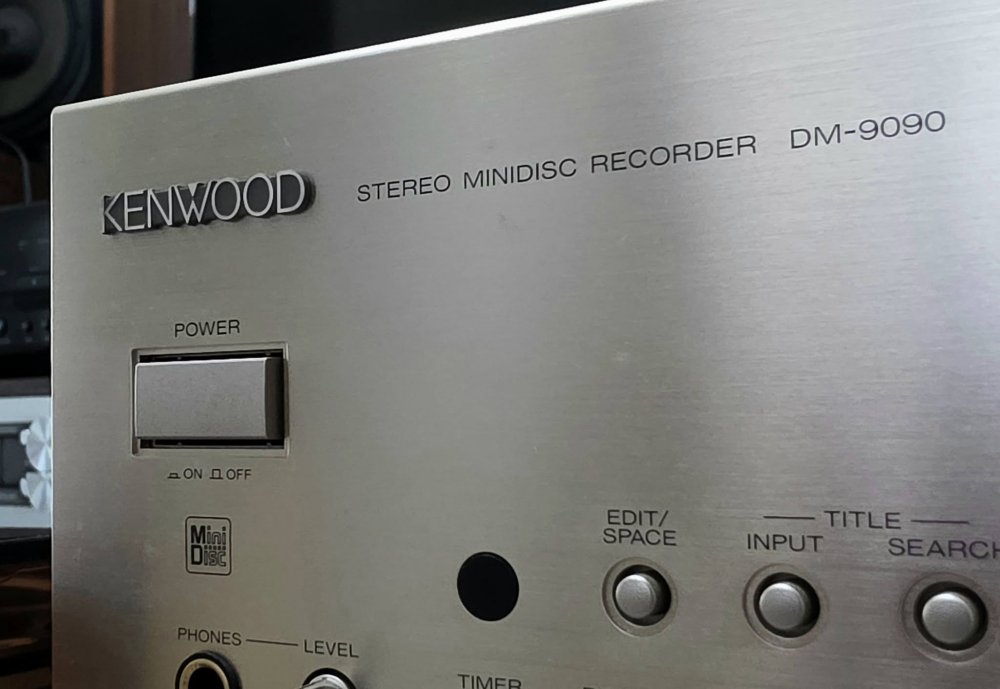

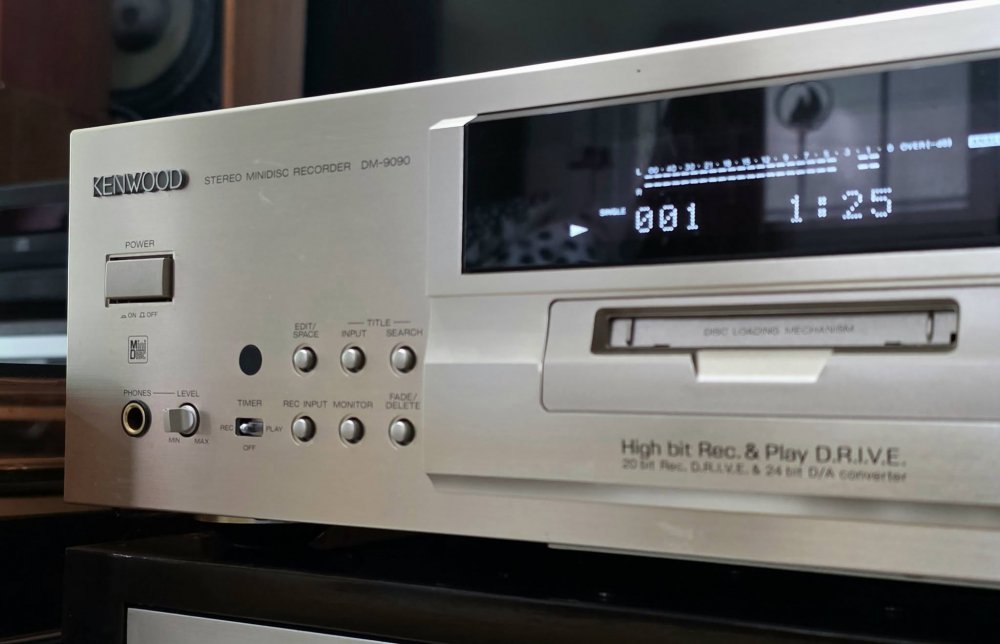

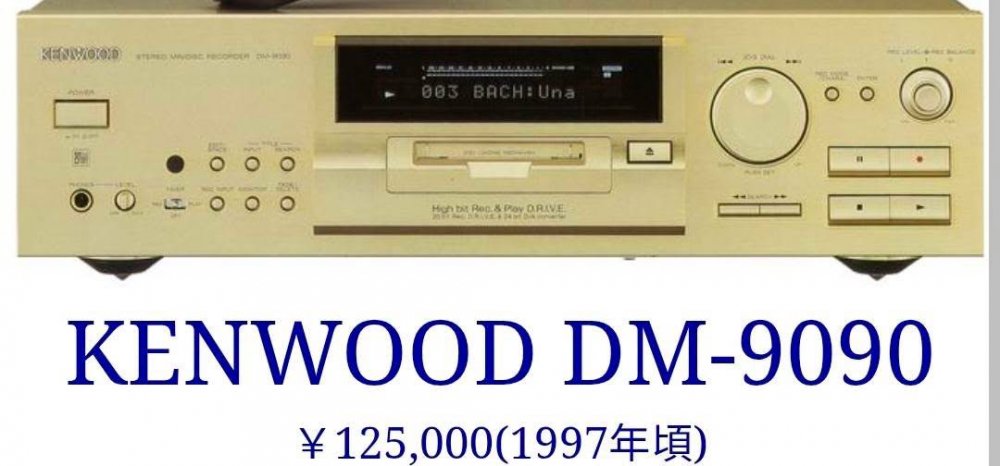

KENWOOD DM-9090
¥ 125,000 (around 1997)
Commentary

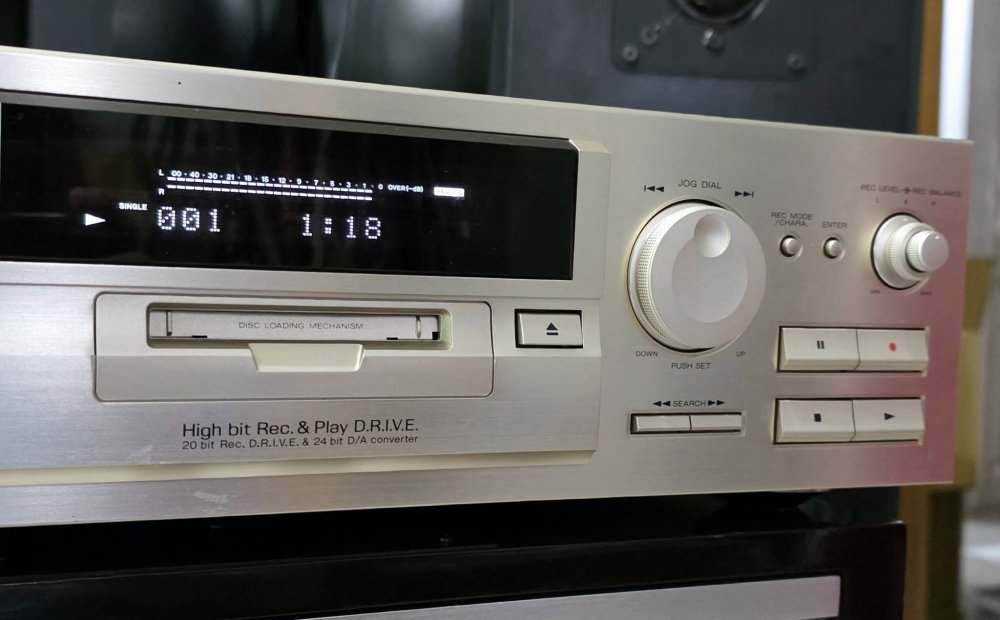

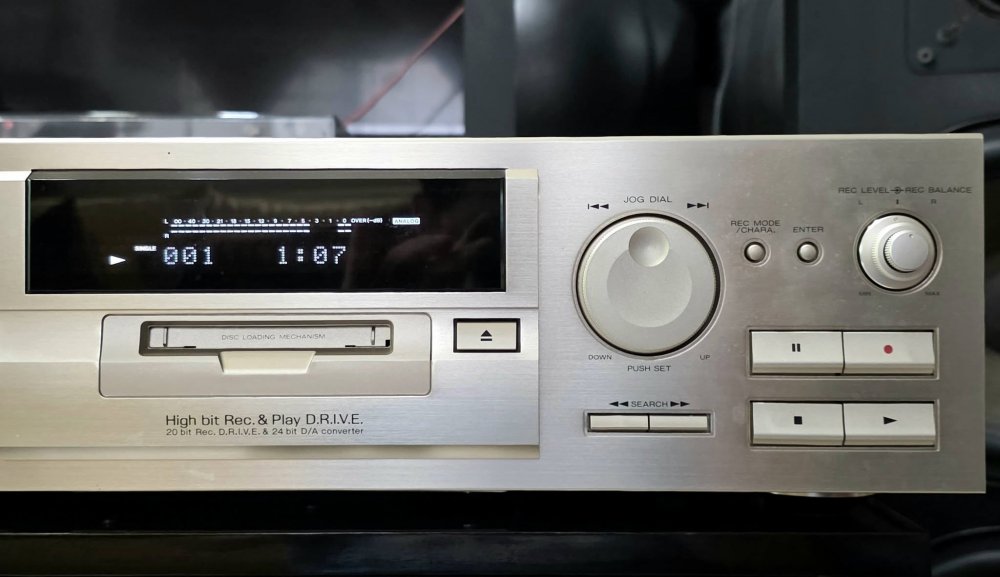

A high-end MD recorder with a 20-bit Rec D. R. I. V. E. system and 24-bit D / A converter.
Kenwood's original D. R. I. V. E. system has been applied to an MD recorder capable of
multi-bit storage by ATRAC, and the 20-bit Rec D. R. I. V. E. system, capable of recording
minute signals from CDs and satellite broadcasts with improved reproducibility, has been
completed and installed in the DM-9090.
This system consists of a D. R. I. V. E. system added to the ATRAC compression process at
the time of recording. The 16-bit input data is converted into 20-bit data by the D. R. I. V. E.
process, and after reproducing the small signal buried in the quantization distortion, the
ATRAC process is processed and recorded on disk, improving the reproducibility of the small
signal.
Using a newly developed 24-bit D/A converter on the output side, the signal recorded by the
20-bit Rec D. R. I. V. E. can be reproduced at high SN, and accurate reproduction is possible
even when a pre-recorded disc is reproduced with 24-bit mastering.
It uses ATRACver4.5 (Adaptive Transform Acoustic Coding) as an audio compression technology.
Compared with conventional ATRAC, the ATRACver4.5 has improved computation capability
and improved micro-level reproducibility and dynamic range.

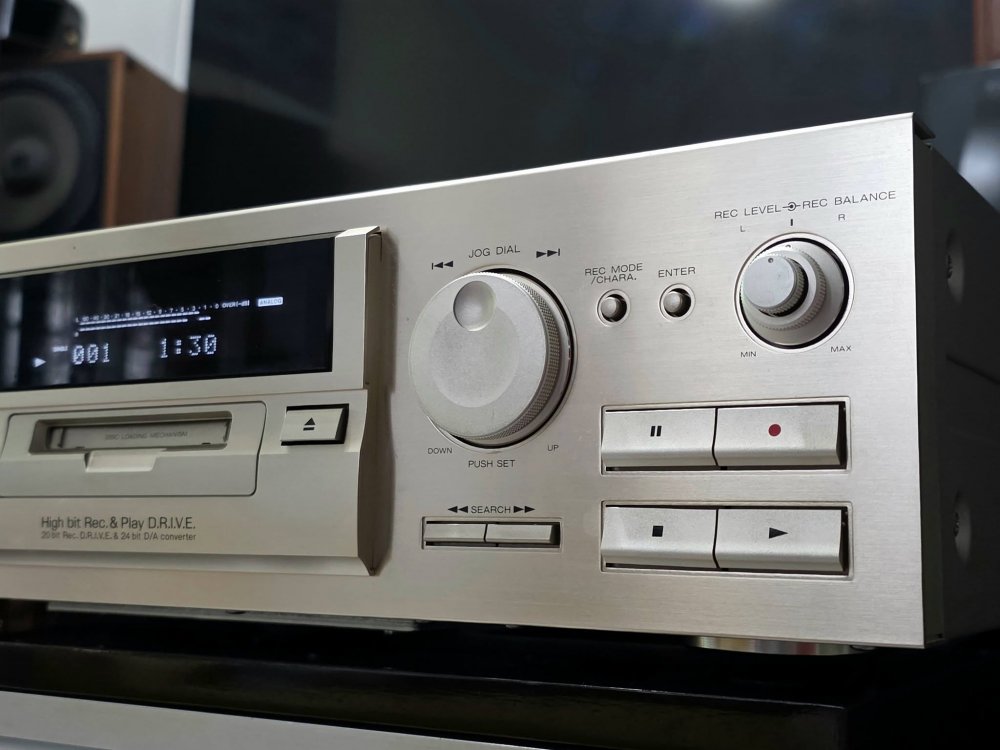

Equipped with a digital rec volume that can be adjusted from + 12 dB to - ∞, the recording level
can be adjusted when recording, and also equipped with fade-in and fade-out functions that
can be used when recording digitally.
The fade time can vary from 1 second to 10 seconds.
It is equipped with a sampling rate converter that automatically converts 32 kHz and 48 kHz
digital sources to 44.1 kHz and enables digital recording by SCMS method.
The A/D converter is equipped with an A/D converter that achieves 20-bit resolution with
1-bit fourth order noise shaping.
In addition to the adoption of a highly rigid aluminum mechanical base and frame, an air
shield structure of 1.2 mm + 2.0 mm thick steel plate is adopted to eliminate disk resonance caused by vibration and sound pressure.
In addition, each structure is made of a combination of different metals to reduce natural
vibration and realize high quality.
When combined with a CD player that outputs CD-TEXT data from the Digital Out, it is possible
to dub CD-TEXT information.
Equipped with functions such as quick erase, track erase, quick move, track move, track
combine, track divide, title input, and title search.
It is equipped with functions such as a preview function that allows you to fine-tune edit points,
an edit cancel function that allows you to redo edits, and mono long-time recording support.
A remote controller for title direct input is included.
By combining with the separately sold Cyber Tight CT-G90, more speedy title input is
possible.
In addition, the CD-G90 is equipped with a printing function, and it is possible to print the
title label in the size that matches the MD case.Upgrade Car Sound

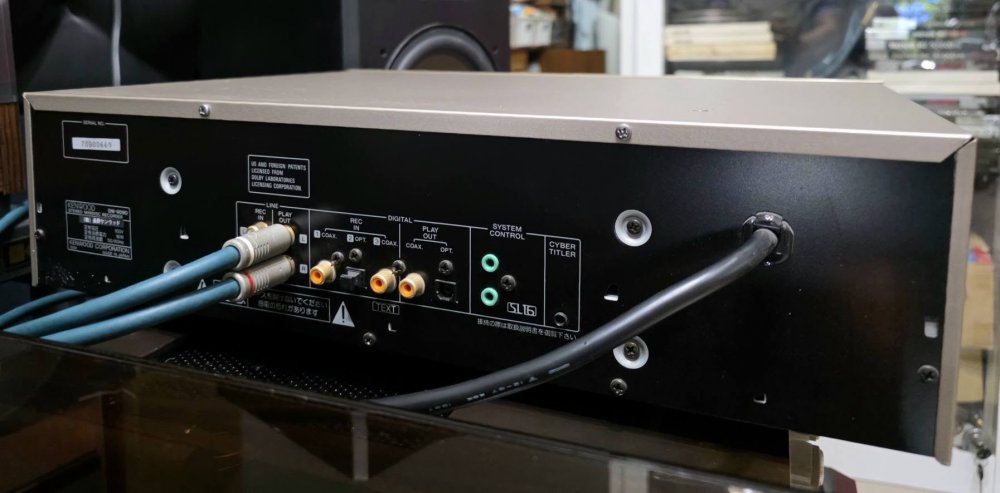

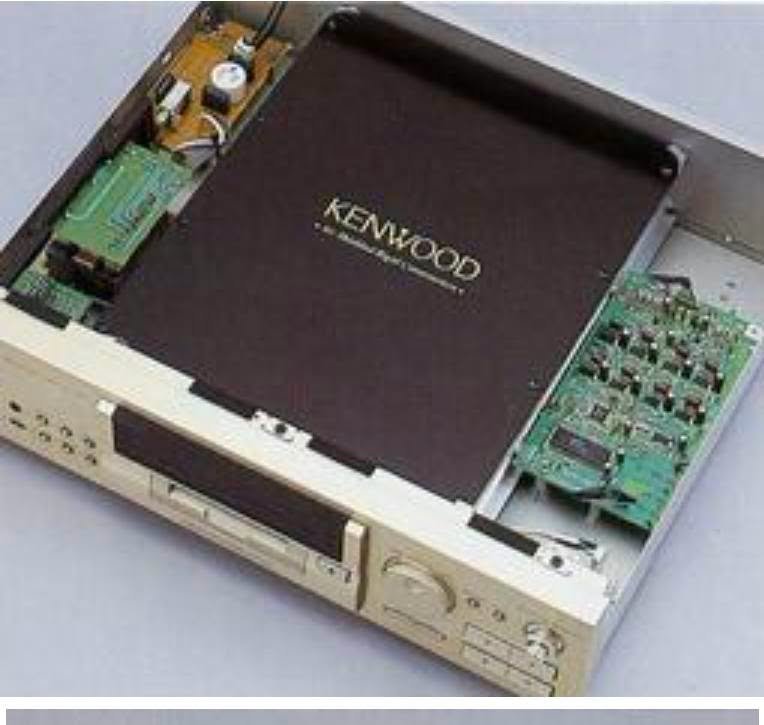

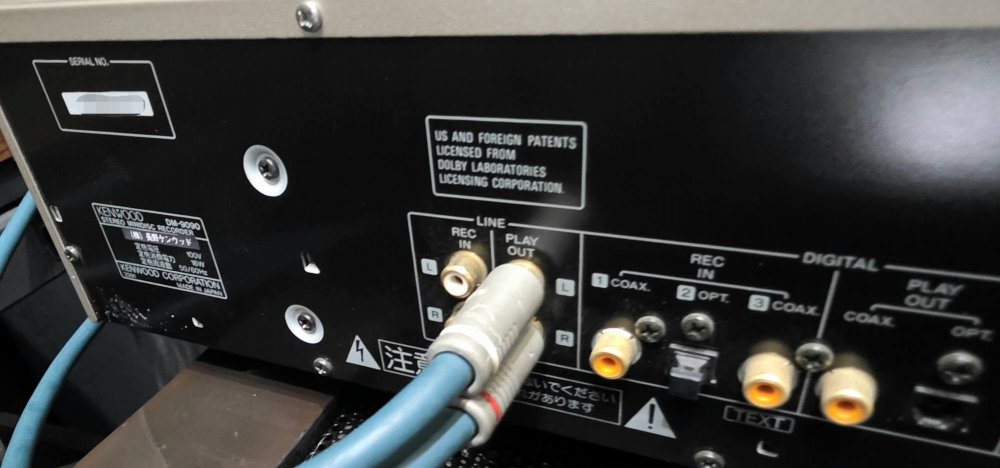

Rear panel Internal layout Element used
Model Rating
Type MD recorder
Reading system Noncontact optical readout (semiconductor laser)
Recording system Magnetic field modulation overwrite system
Number of revolutions 400 rpm ~ 900 rpm (CLV)
Voice compression system ATRACver4.5(Adaptive Transform Acoustic Coding)
D/A Converter
D/A conversion 1-bit (24-bit Fine D. R. I. V. E.)
Oversampling 32fs(1411kHz)
A/D Converter
Method 4th-order delta-sigma + D. R. I. V. E. conversion
Sampling frequency 44.1kHz
<Digital Audio Performance>
Frequency characteristic 8 Hz to 20 kHz (during playback, EIAJ)
Signal-to-noise ratio 110 dB or More (EIAJ at Playback)
Dynamic range 98 dB or More (EIAJ at Playback)
Overall strain rate 0.004% or Less (Playback, 1 kHz, EIAJ)
Channel separation 105 dB or More (Playback, 1 kHz, EIAJ)
Wow and flutter Below measurement limit (± 0.001% W Peak, EIAJ)
Input Sensitivity / Impedance Line : 500mV/22k Ω or more
Output level / load impedance Fixed Output : 2.0V/0.3k Ω
Headphone : 20mW/32 Ω
Digital input / output Coaxial input / output : 0.5Vp-p/75 Ω
Optical input / output : -15dBm ~ -21dBm (emission wavelength 660 nm)
<General>
Pwer 100 VAC, 50Hz/60Hz
Rated power consumption 16W (Electrical Appliance and Material Control Law)
Maximum external dimensions Width 440x Height 130x Depth 373 mm
Weight 10.2kg
Attachment Remote control
Sold Separately Cyber Tightler CT-G90 (¥ 32,000)
