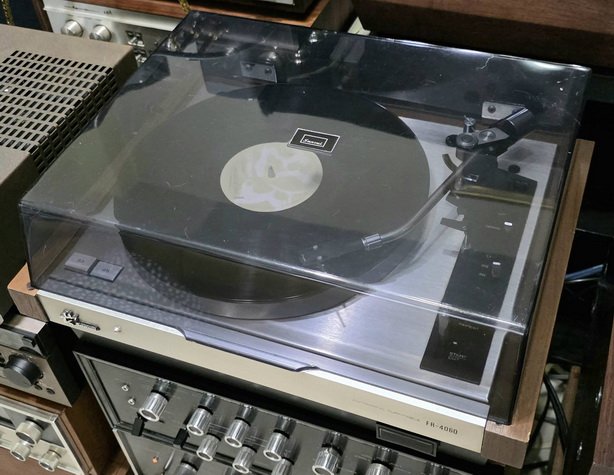

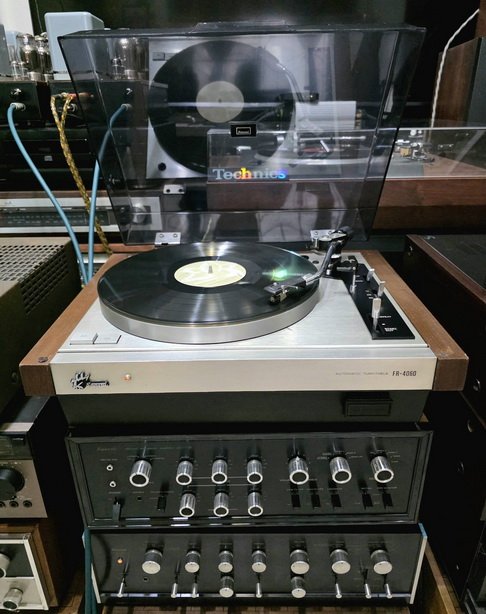

ขายเครื่องเล่นแผ่นเสียง SANSUI FR-4060 ระบบออโต้ สภาพสวยเสียงดี หายาก Made in Japan
ขายเครื่องเล่นแผ่นเสียง SANSUI FR-4060 ระบบออโต้ สภาพสวยเสียงดี หายาก Made in Japan
รีวิวร์ และเสปคเครื่องจากเว็บต่างประเทศครับ ...

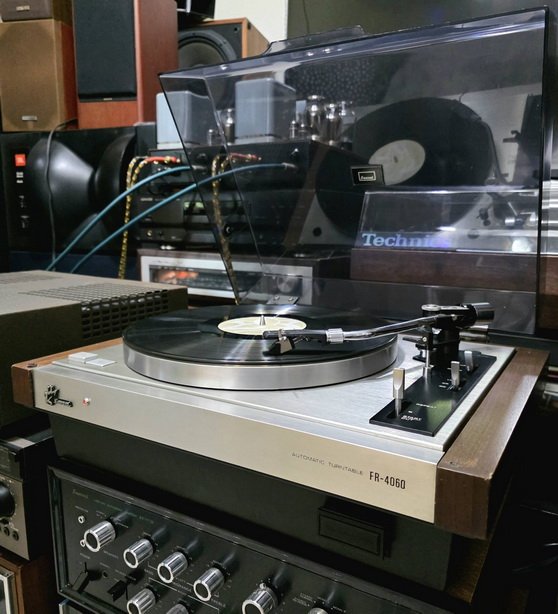

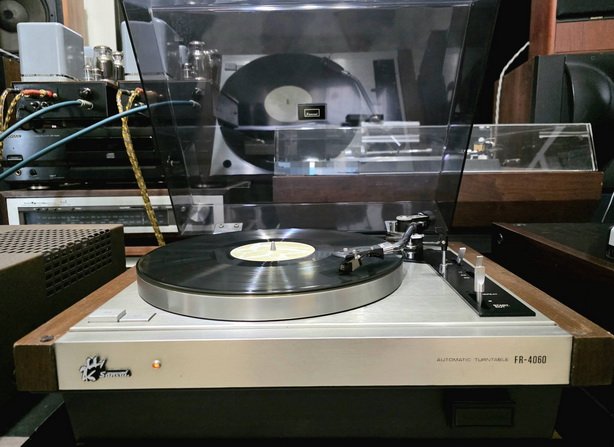

SANSUI FR-4060
¥58,000 (circa 1973)
Commentary
An automatic record player equipped with an electronic automatic mechanism.
It inherits the basic performance and functions of conventional manual players and makes
them automatic.
The effect of arm side pressure, which is a problem with the auto player, is solved by a unique
auto mechanism using magnets, reed switches, and a dedicated 16-pole timing motor, and all
auto operations can be performed at a constant speed.

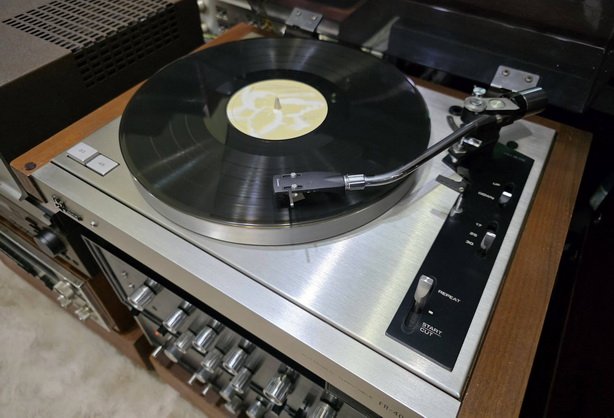

If you pull the cue lever on Start/Cut, it will automatically start playing, and at the same time
as the performance ends, it will return to the armrest and turn off the power. You can also
cut the performance in the middle with a one-touch operation of the lever. If you want to
enjoy playing repeatedly, you can play continuously by turning the lever down to REPEAT.
Since the auto mechanism is mechanically non-contact during record playing, there is no need
to manually set it even during automatic operation, and you can freely operate it manually
by simply operating the arm by hand.
The turntable shaft of the drive is treated with a centerless polishing surface and is further made
of high-performance special grease to reduce friction to zero.
In addition, the bearings are made of Teflon material, and together with a 1.7 kg turntable made
of 30 cm die-cast aluminum alloy, a double-sided polished polyurethane belt, and a 4-pole
synchronous motor, the wah flutter is minimized.

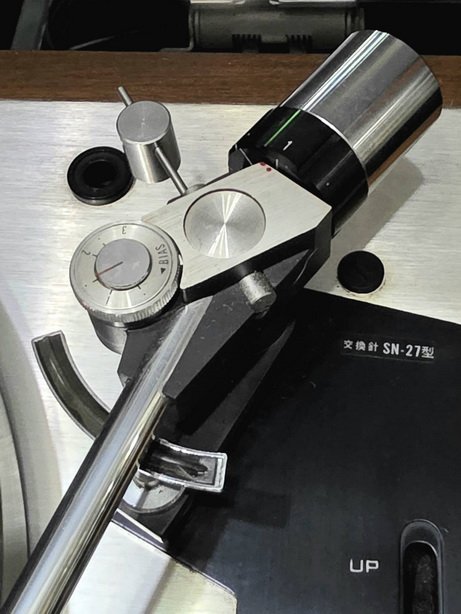

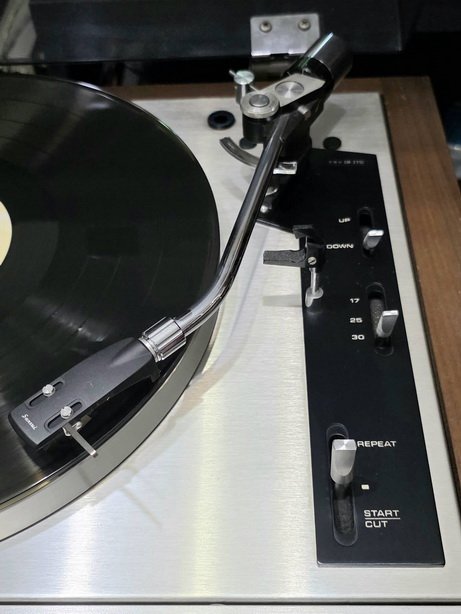

The tonearm uses a static balanced S-shaped pipe arm, which is suitable for supporting not
only 2 channels but also 4-channel records. In addition, anti-vibration rubber dampers are used
for the weight shaft to prevent resonance.
In addition, the repulsion of a thread-shaped precision spring is applied to the inside force
cancellation, and the optimal amount of cancellation can be selected from zero simply by
adjusting the memory of the knob according to the needle pressure.
It is equipped with an arm lifter.

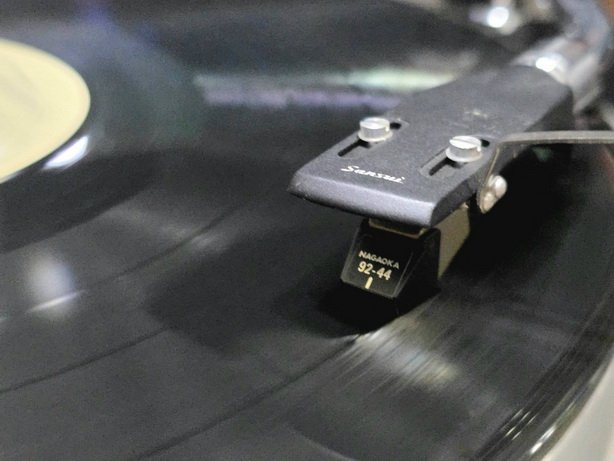

The cartridge is equipped with an MM-type cartridge - SV-27.
The mass of the vibration system is extremely small, and the damper holding mechanism of
the cantilever is a unique structure that improves the tracking and transient characteristics of
horizontal and vertical displacement. In addition, in order to improve the phase difference, which
is a problem in the case of 4-channel records, the phase difference between the left and right
channels is minimized as much as possible.
To prevent howling, a special synthetic rubber insulator is used.

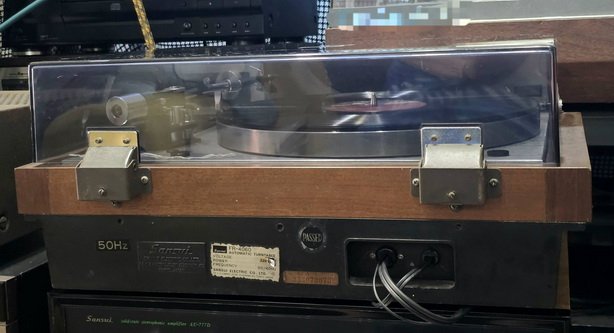

It uses a low-capacitance output cord that can be connected to the rear socket to reduce
high-frequency attenuation.
The connection terminals of the arm and shell are gold-plated.

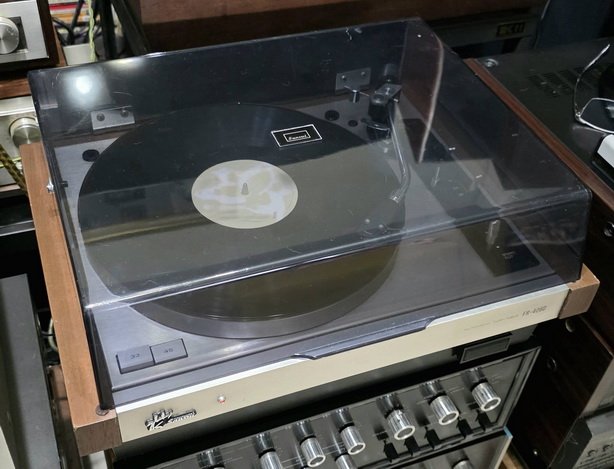

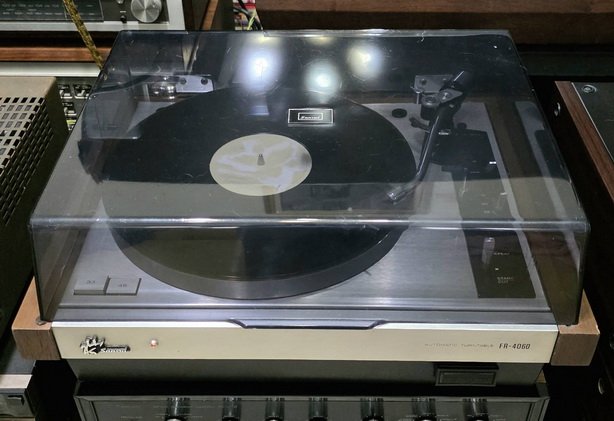

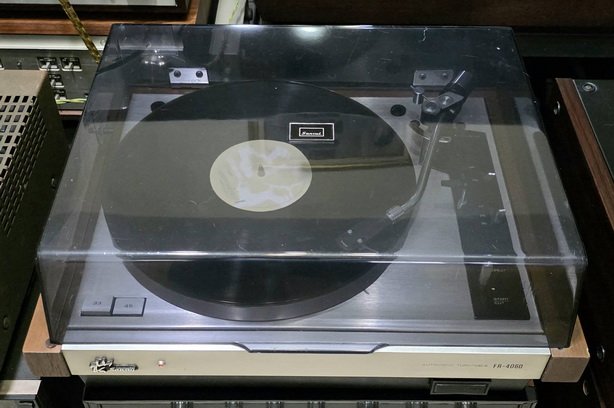

It is equipped with a lateral balancer, a removable free-stop dust cover, a shell stand and
a subweight.
It is equipped with a muting circuit, so you can enjoy smooth playing without noise or
shock.
It is equipped with a remote control socket and can be operated automatically from a distance of
3 meters using the remote controller (sold separately).
Model rating
Model Stereo record player
Automatic operation mechanism Automatic system with 16-pole synchronous motor
at 3 rpm
(lead-in, return, cut, repeat and arm lift)
< Turntable Section>
Turntable 30 cm diameter, 1.7 kg aluminum alloy die-cast
Motor 4-pole synchronous type
Drive system Belt drive system

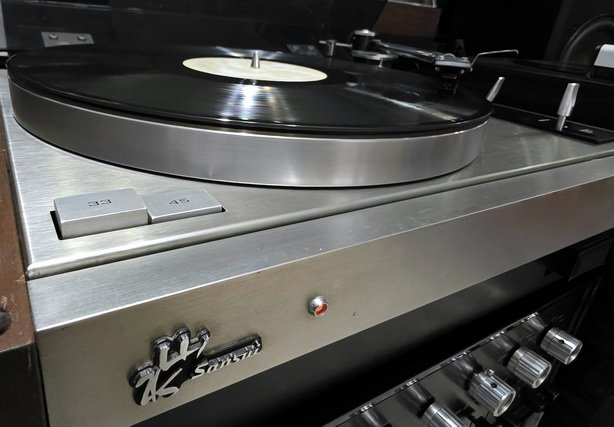

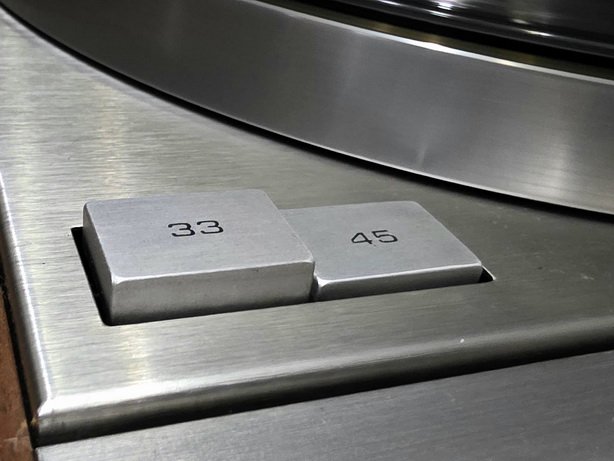

Rated speed 33 1/3, 45 rpm
Wow Flutter Less than 0.06%
S/N 50dB or more
< Tonearm Section>
Tonearm Static-balanced, needle pressure direct reading S-shaped pipe arm
Inside force cancellar with lateral balancer
4-terminal plug-in head
Full length 220mm (effective length)
Overhang 15mm
Maximum Cartridge Weight 20g (with included shell, subweight)
< Cartridge Section>
Cartridge Moving Magnet Type (SV-27)
Frequency response 10Hz～23kHz
Output Voltage 3.5mV(1kHz、50mm/s)
Standard Load Impedance 50kΩ
Needle tip 0.5 mil Diamond Hand (SN-27)
Appropriate needle pressure 1.5g
< General >
Maximum power consumption 13W
Dimensions W469 x H204 x D381mm
Weight 10.6kg
