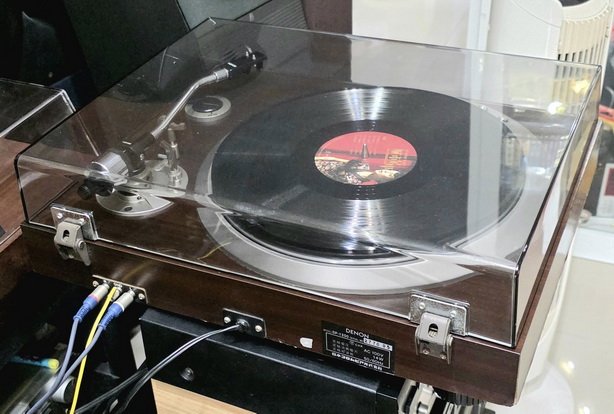

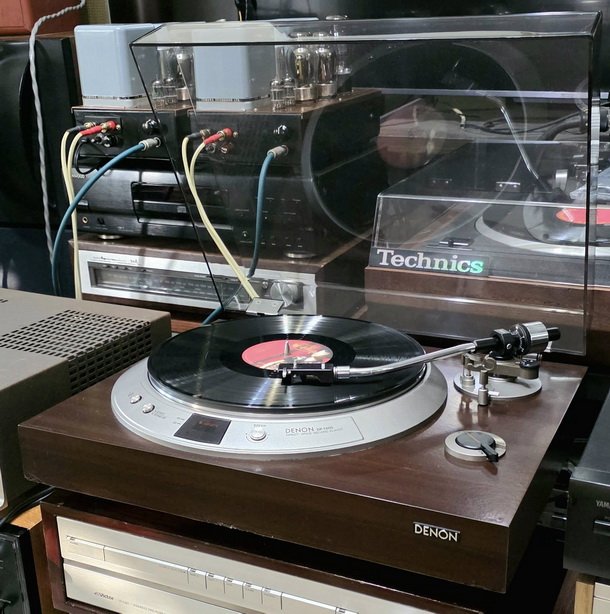

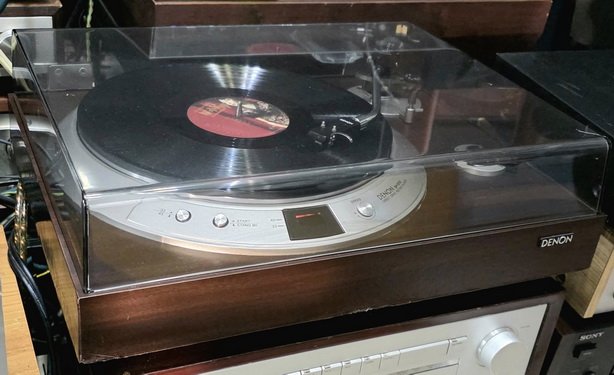

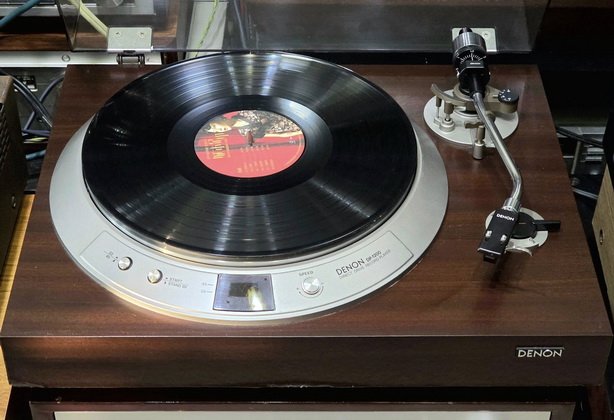

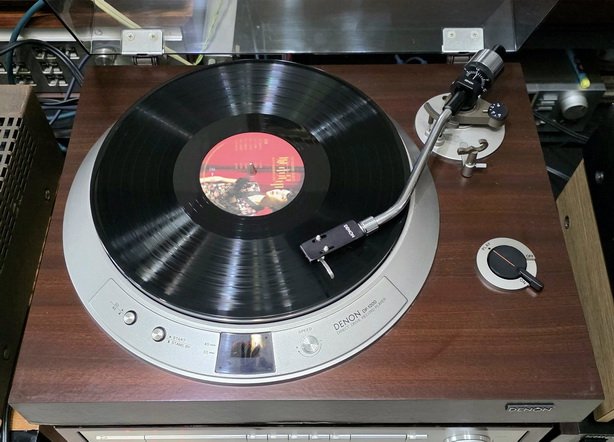

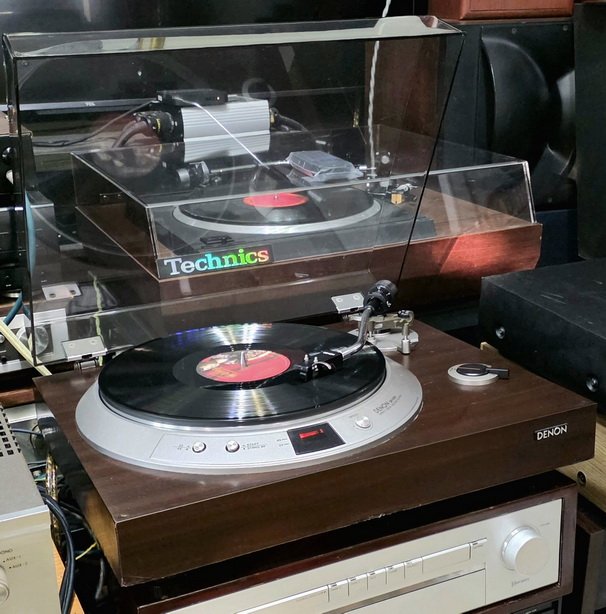

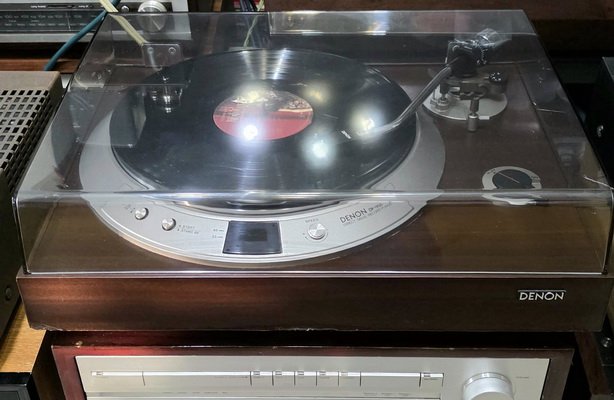

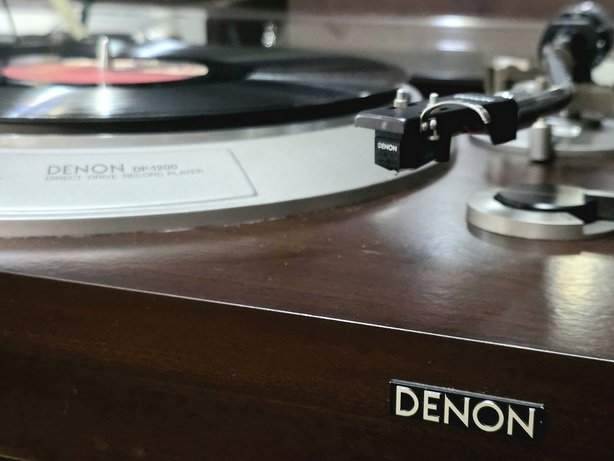

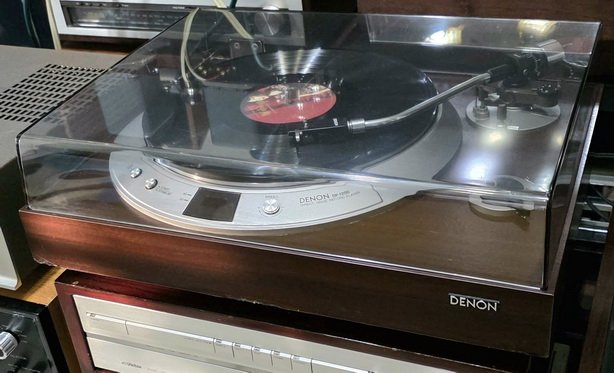

DENON DP-1200
¥49,800 (released in 1977)
explanation
A record player equipped with an auto-lift mechanism that considers ease of use without compromising the basic performance of a direct drive player.
The drive system adopts a direct drive system.
Since there is no rotary transmission mechanism such as belts or idlers, there are no wah
flutters or rumbles caused by them, and there are no parts that cause wear or deformation,
so the initial performance is maintained for a long time.
DENON's unique high-precision magnetic recording detection method is used to detect
rotational speed.
The rotation speed is controlled by DENON's proprietary method of recording 1,000
high-precision pulse signals on a magnetic material coated on the inside of the turntable rim
and detected by the magnetic head. As a result, there is almost no change in rotation speed
even if the load conditions such as needle pressure and arm position change, as well as
external conditions such as fluctuations in power supply voltage and frequency, and changes
in humidity.
The drive motor adopts AC servo motor.
AC motors rotate more smoothly in principle compared to DC motors, and are better in terms
of rumble, wah flutter, etc.
It is equipped with an auto-lift mechanism with non-contact end detection.
The DP-1200's record end detection method uses a non-contact method that optically detects
the sound of the record and the speed at which the tonearm moves as it moves from the groove
to the readout. This eliminates the need to worry about loading the tonearm.
The lifting mechanism of the arm works smoothly by means of oil dumping.
After the auto-lift, the player will turn off and the control lever will also work to return to the
off position.
It is equipped with a standby switch to start/stop the turntable. This makes it easy to start
the record and adjust the needle pressure of the cartridge.
It is equipped with an arm height adjustment mechanism.
It adopts a cabinet with a howling countermeasure.
The cartridge is equipped with a DL-8A, an MM-type cartridge.
Model rating
Model Direct Drive Player System
< Phono Motor Department>
Drive system Direct drive by AC servo motor
motor AC Torque Motor

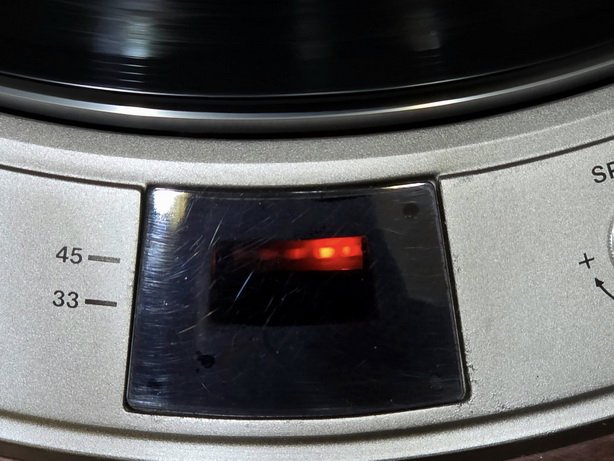

Rotation speed 33・1/3rpm, 45rpm

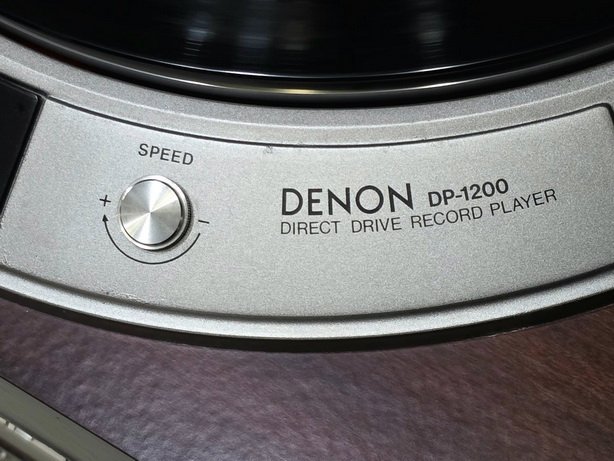

Speed Adjustment Range ± 3% or more
S/N ratio 75dB or more (DIN-B)
Wow Flutter 0.018% WRMS or less
Startup characteristics Constant speed rotation within 1/2 revolution
turntable Made of 30cm aluminum die-casting, 1.1kg
Inertial mass 160 kg/cm2
Speed control system Servo method with frequency detection

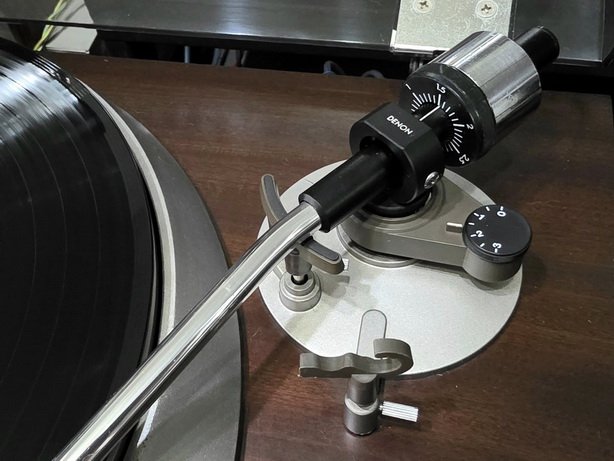

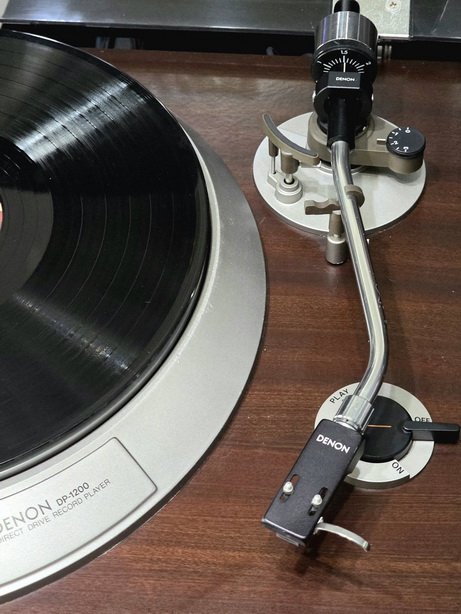

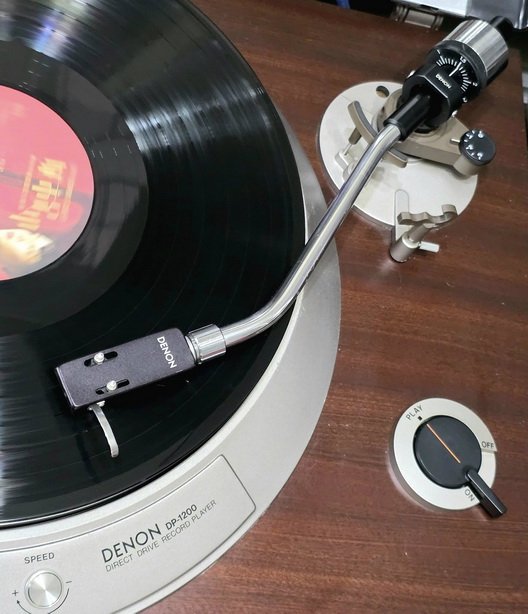

< Tonearm Section>
Model Static Balance
Effective Length 244mm
overhang 14mm
Tracking errors Within 2.5 ゚
Needle pressure variable range 0~2.5g/1 rotation
1 scale 0.1g, direct reading method
Fit cartridge dead weight range 5g～11g
Shell Dead Weight 9g (excluding mounting screws and nuts)
Arm height adjustment range 38~43mm (from cabinet surface to arm pipe center)
Head Connector EIA Standard 4P Connector
Arm Lifter oildump

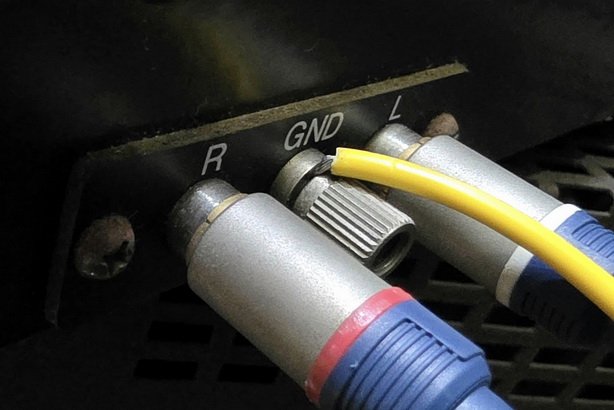

Output Code Low Capacity Cord

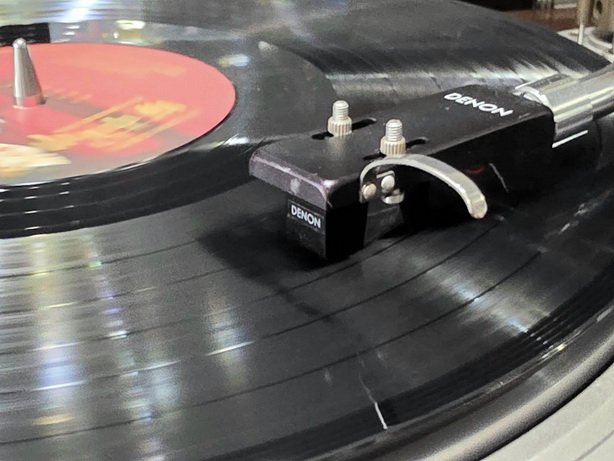

< Cartridge Section>
Model MM stereo cartridge
Name DL-8A
Output Voltage 3mV (1kHz, 50mm/s, horizontal)
Difference in left and right sensitivity Within 2dB (1kHz)
Left and right separation 20dB or more (1kHz)
compliance 8x10-6cm/dyne
Needle 16.5 micron (0.65 mil) round diamond needle
Needle pressure 2±0.3g
Playback frequency range 20Hz～30kHz
prudence Approx. 5.7g
Suitable Load Resistance Approx. 50kΩ
Suitable load capacity Approx. 100pF
Needle exchange DSN-42 (0.65mil Round Diamond Needle)
< General >
power AC100V、50Hz/60Hz
Power consumption 9W

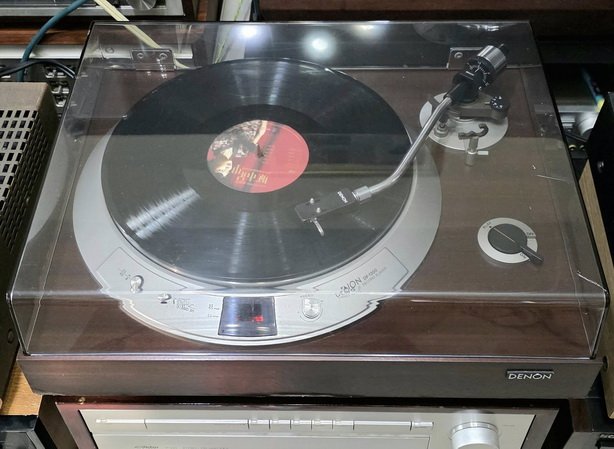

Dimensions W485 x H 163 x D 375 mm (with dust cover closed)
weight Approx. 10kg
