Index Search
The Select knob can be used to perform an Index Search when the INDEX button is ON
(the LED on the INDEX button lights up).
Auto Space
During playback, it is possible to insert a silent space of about 4 seconds between tracks. To do this, simply press the AUTO SPACE button to ON (the LED on the AUTO SPACE button lights up).
Auto Edit
This function automatically divides the total recorded time on the disc in half and rearranges the tracks so that they fit neatly onto the A and B sides of a cassette tape.
Display of Playback Locations
A bar graph display indicates playback points on the track being played. Elapsed time and Remaining time displays are switched using the TIME button.
CD-R Reading Capability
DN-C680 reads CD-R discs with or without Table Of Contents (Note: some CD-Rs without
TOC might not be readable)

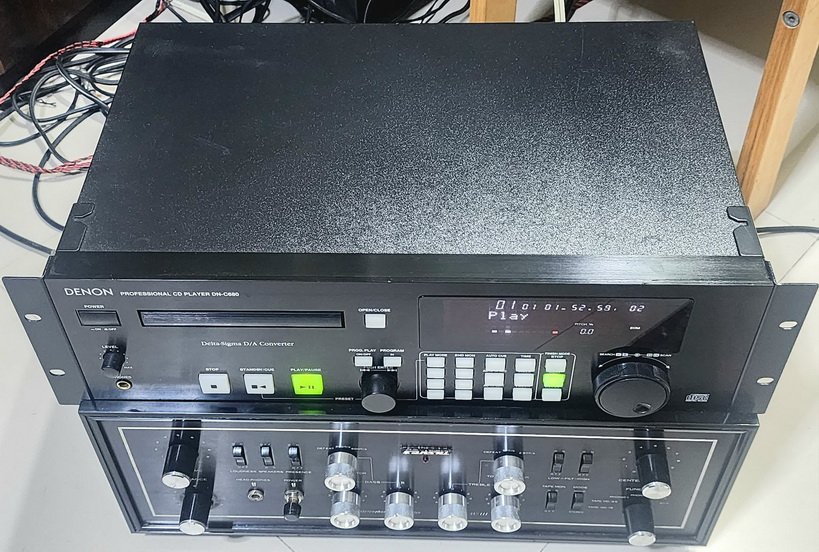

19-inch Rack Mountable (Height: 3U)

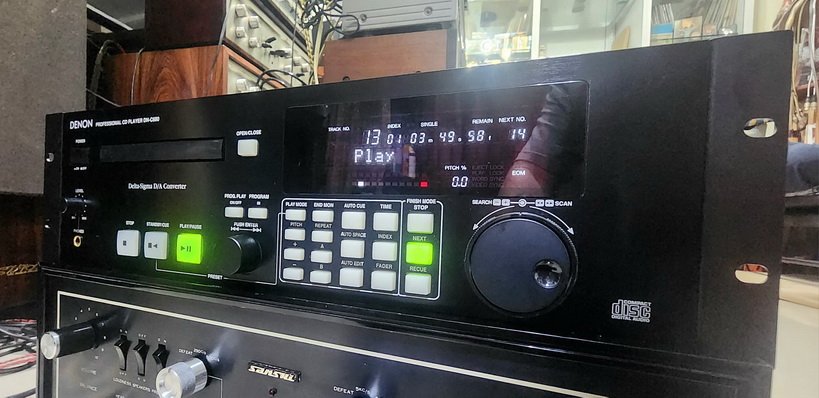

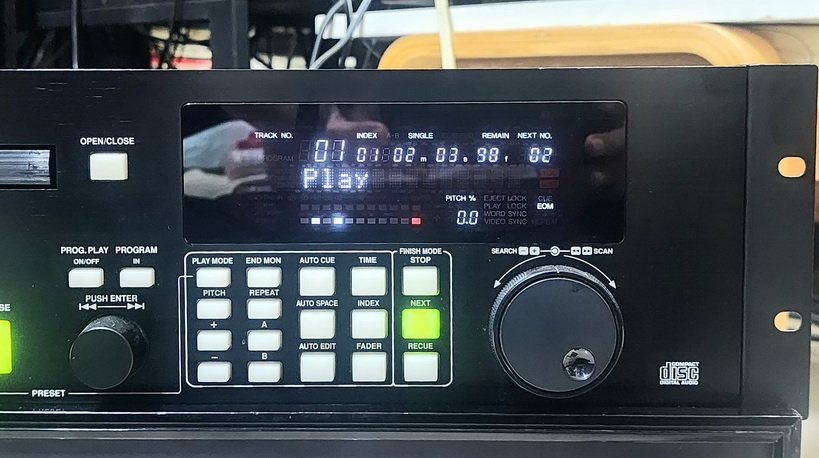

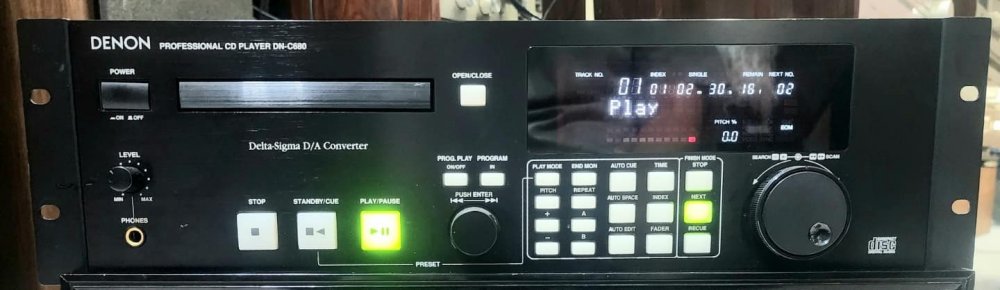

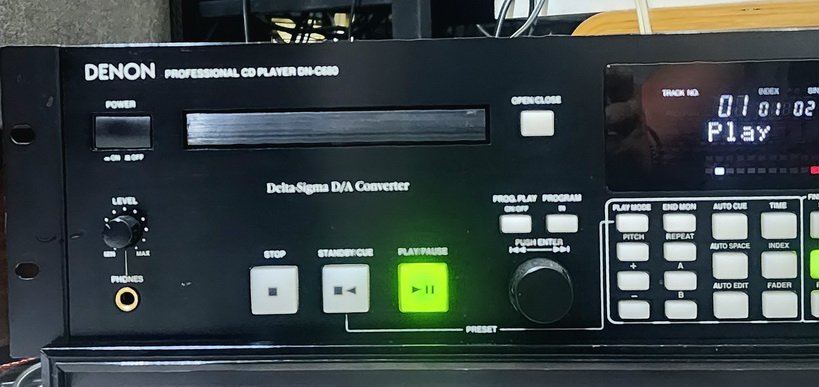

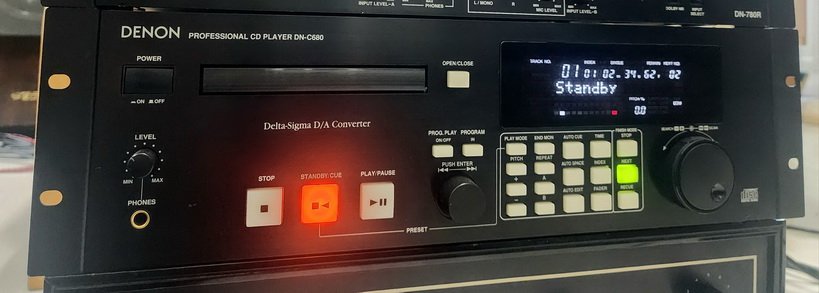

Large FL Display, Illuminated Rubber Buttons

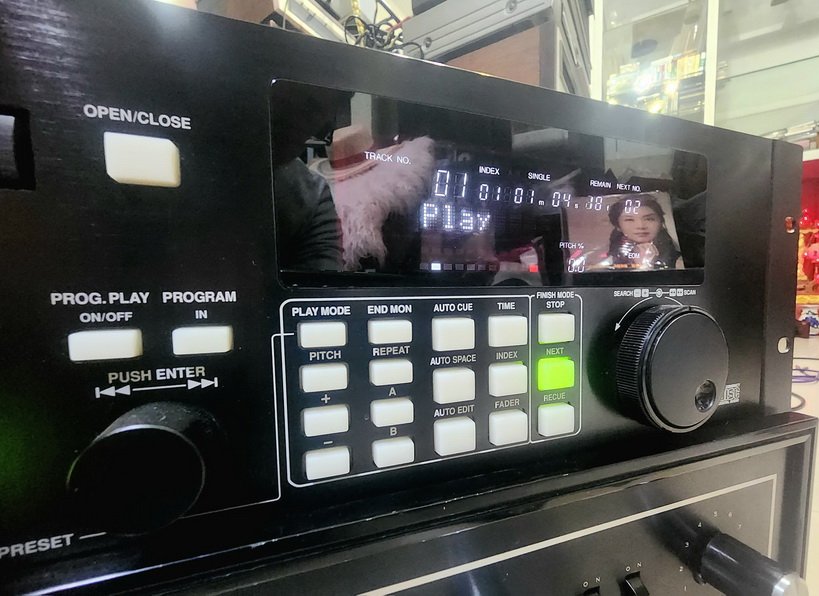

Track Search Select Knob (Easy track selection)

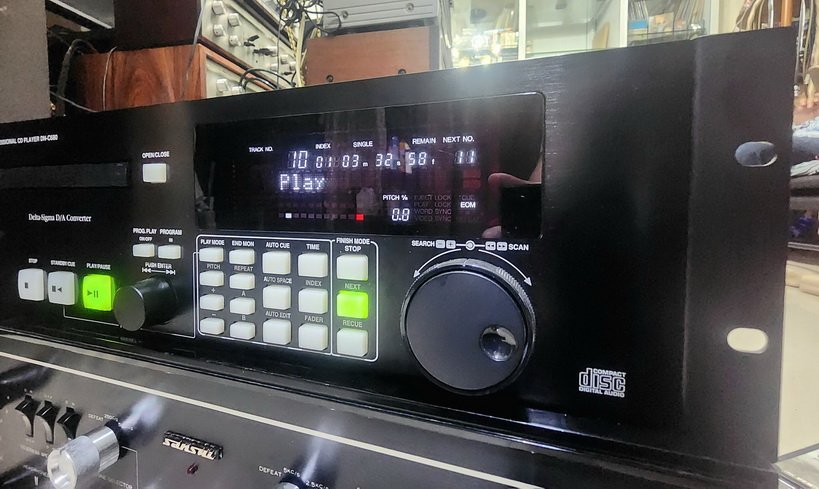

Jog Dial/Shuttle Wheel
Perform searches to 1 MD frame precision using the jog dial and easy scans using the shuttle ring.
Program Play (Max. 25 tracks)
When the PLAY mode is set to Single, the player stands by at the beginning of next track
(at Finish mode "NEXT").
When the PLAY mode is set to Continuous, the playback is continued according to your programmed sequence.
Play mode & Finish mode
Play mode
Continuous: Play a whole disc
Single: Play a track
A-B: Play an A-B loop
Finish mode (Stop, Next, Recue)
*only when Single Track play is selected
Stop: Stops at the end of the track
Next: Standby at the beginning of the next track after when the selected track is played
Recue: After the selected track has played, the unit will standby at the beginning of that
selected track
Auto Cue
After a track is selected, it is automatically cued to the point where audio starts. Cueing takes place at the point where audio starts rather than where the track starts. The level at which sound
is first detected can be set between -36 to -72 dB (7 steps).
End Monitor
Pressing the END MON button during standby instantly previews the end of the track, thus assuring perfect "outros". The point at which monitoring starts can be set within a range of
5 to 35 seconds (7 steps) prior to the track's end.
End Of Message (EOM)
At the end of a track, the PLAY/PAUSE button flashes, providing a visual warning to the operator that the track will end shortly. The point at which the flashing begins can be set within a range of
0 to 30 seconds (7 steps) prior to the end of the track.
Pitch Control (±9.9%, 0.1% step)
Instant Start (Playback starts less than 0.01 seconds after the PLAY button is pressed.)

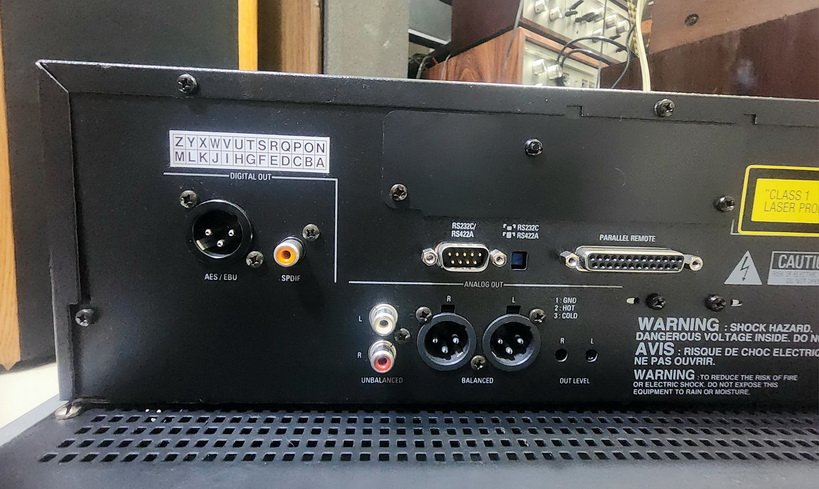

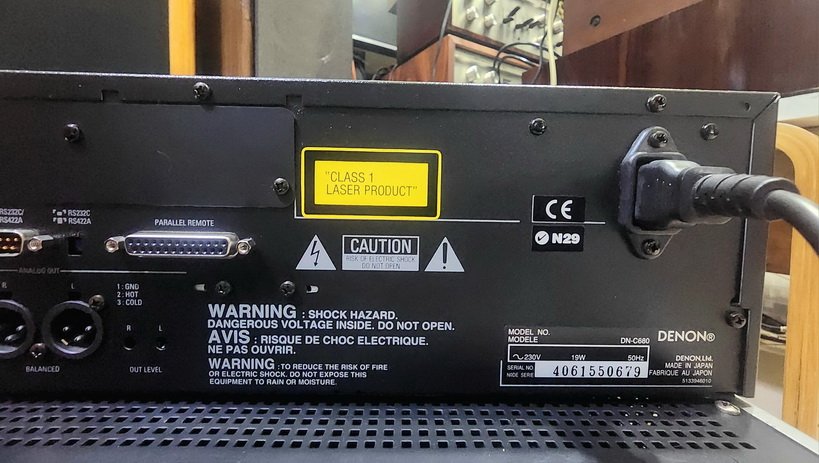

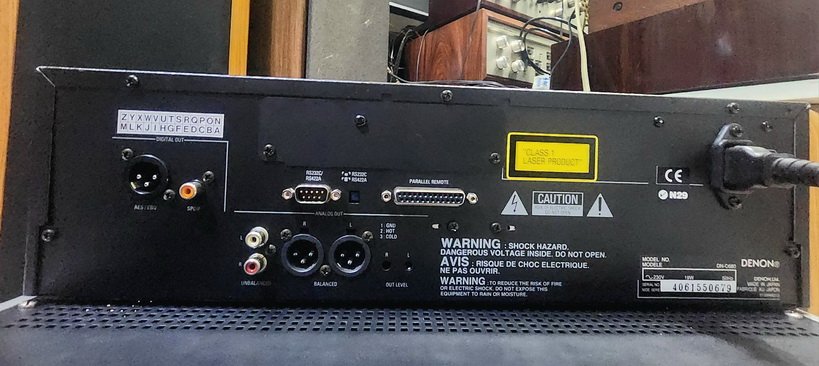

External Control Terminals
Serial Remote (RS-232C/RS-422A switchable, D-Sub 9-pin)
