(24/01/2559 17:16:51)
โพสต์ที่ 7
NAT Audio : Magma New Single Ended Class "A" Mono Block Power Amplifier
NAT Audio ได้สร้างที่สุดของเพาเวอร์แอมป์หลอด Single Ended Class "A" ที่ใช้หลอดขยายเพียงหลอดเดียว ( Single tube) ได้พละกำลังที่มหาศาล มันถูกเรียกว่า Magma เนื่องจากแสงของไส้หลอดที่เหมือนแม็กม่าในปล่องภูเขาไฟ
Type Single Ended Class "A"
Power Output 170 Watts @ 4 & 8 ohms; 1 kHz
Frequency Response 6 Hz to 80 kHz;
Input impedance 100 kohms
Input Sensitivity 2.45 V RMS for full power output
Gain 27.50 dB
Rise Time 5 microseconds
Noise 105 dB below rated output "A" weighted
Phase status Regular ( 0 )
Tube Complement 1x 6N1P-EV, 1 x GM100 (all by military standard and N.O.S.)
Power Requirement 110 VAC or 220 VAC @ 50 to 60 Hz, max. 750 VA
Dimensions 11.8" (300 mm) wide 30.3" (770 mm) deep 14.2" (360 mm) high
NET Weight approx. 133 lbs (60 kg) unpacked / per piece
TOTAL Weight approx. 332 lbs ( 150 kg)
Type Single Ended Class "A" Triode, Ultra-linear or Tetrode connection
Power Output 120 Watts @ 1 kHz
Frequency Response 8 Hz to 100 kHz -3dB
Input impedance 100 k ohms parallel with 100pF
Input Sensitivity 1.5 V RMS for 100 Watts
Gain 25.50 dB (x18.8)
Rise Time 3.0 microsecond
Noise 110 dB below rated output "A" weighted
Tube Complement 1 x 6N1P-EV, 1 x 6N6P/6N30P, 1 x QB5/1750
Power Requirement 110 to 240 VAC @ 50 to 60 Hz, 450 VA max. (set in factory)
Dimensions 11.8" (300 mm) wide 20.9" (530 mm) deep 10.2" (260 mm) high
NET Weight approx. 77 lbs (40 kg) unpacked / per piece
TOTAL Weight approx. 212 lbs (96 kg) packed in wooden box
สนใจติดต่อสอบถามข้อมูลได้ที่ Sound Box
อาคารศูนย์การค้าฟอร์จูนทาวน์ ชั้น 3 โทร.02 642 1448
092-890-4660
Line ID : tsoundbox http://www.soundboxthai.com
(24/01/2559 17:21:27)
โพสต์ที่ 9

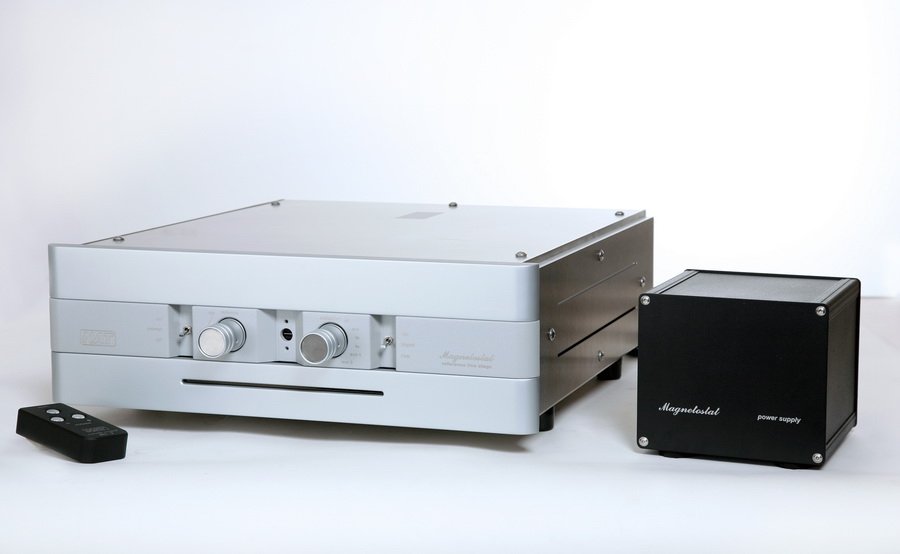

NAT Audio : Magnetostat Reference Absolute Zero Feedback Vacuum Tube Line Stage
ไลน์สเตจรุ่นเรือธง ใช้วงจรแบบ Pure triode class “ A” ให้เสียงดนตรีที่มีความเป็นธรรมชาติสูง ใช้หลอด 6S31B-R ซึ่งเป็นหลอด N.O.S. (New Old Stock) ที่คัดพิเศษทั้งหมด
ภาคจ่ายไฟแบบ High capacity battery supply ไร้ซึ่งการรบกวนของกระแสไฟ ให้การทำงานของภาคออดิโอมีประสิทธิภาพสุงสุด
Type Absolute Zero Feedback Triode
Operation Single-ended (RCA) or balanced (XLR)
Frequency Response 3 to 400 kHz, -3 dB; 20Hz to 20kHz, +/-0,1dB
Noise 100 dB IHF reference to 1V
Gain 21 dB (X 11) RCA output
THD & N <0.08 % @1V output
Input Impedance >20 kohms
Output Impedance <280 ohms–RCA or XLR output :600 ohms balanced compatible
Stereo Separation >95 dB @ 10 kHz
Tube Complement 8 x 6S31B-R per unit (N.O.S. & military grade)
Power Requirements 110 VAC or 220 VAC @ 50 to 60 Hz, max. 50 VA
Dimensions 19" (483 mm) wide 21.6" (550 mm) deep 7.1" (180 mm) high (max. dimensions)
NET Weight approx. 132 lb. (60 kg) unpacked
TOTAL Weight approx. 154 lb. (70 kg) packed in wooden box
สนใจติดต่อสอบถามข้อมูลได้ที่ Sound Box
อาคารศูนย์การค้าฟอร์จูนทาวน์ ชั้น 3 โทร.02 642 1448
092-890-4660
Line ID : tsoundbox http://www.soundboxthai.com
(24/01/2559 17:34:45)
โพสต์ที่ 10
NAT Audio : Symmetrical Balanced Dual Mono Zero Feedback Vacuum Tube Line Stage
Frequency Response 0.07 Hz to 300 kHz – 3 dB ; 20 Hz to 20 kHz +- 0.01 dB
Noise < -95 dB "A" weighted @ 1V rms
Gain 15.5 dB (X 5.6 Phase status: non-inverted (0 degree)
THD & N < 0.03 % 20 Hz to 20kHz @ 1V rms
Input Impedance > 10 kohms single ended: >20 kohms balanced
Stereo Separation > 100 dB @ 1 kHz
Tube Complement 2 X OA 2, 2 X PY88, 2 X 6N1P-EV, 2 X 6N2P-EV & 4 X 6N6P-I
Output Impedance < 70 ohms on single ended ; <140 ohms on balanced
Power Requirements 110 VAC or 220 VAC @ 50 to 60 Hz, max. 100 VA
Dimensions 19" (483 mm) wide 18" (455 mm) deep 6.5" (165 mm) high (max.dimensions)
NET Weight approx. 60 lb. (27 kg) unpacked
TOTAL Weight approx. 77,2 lb. (35 kg) packed in wooden box
สนใจติดต่อสอบถามข้อมูลได้ที่ Sound Box
อาคารศูนย์การค้าฟอร์จูนทาวน์ ชั้น 3 โทร.02 642 1448
092-890-4660
Line ID : tsoundbox http://www.soundboxthai.com
(24/01/2559 17:39:08)
โพสต์ที่ 11
Pear Audio Analogue
Peter Mezek เป็นผู้ที่หลงใหลในเสียงเพลงเป็นอย่างมาก เขาคลุกคลีและมีส่วนร่วมในการพัฒนาอุปกรณ์ Hi-Fi และ Turntables รวมระยะเวลาเกือบ 40 ปี ซึ่งตัวเขาเองเป็นตัวแทนจำหน่าย Turntables Linn LP 12 และ Well Tempered turntables
ในยุค 80 มี Turntables จากผู้ผลิตชั้นนำมากมายผ่านมือ Peter นับพันๆเครื่อง ซึ่งทำให้เขาได้ค้นพบความลับของการออกแบบในแต่ละเครื่อง และรู้ถึงเคล็ดลับวิธีการที่ทำให้เครื่องนั้นๆแสดงประสิทธิภาพออกมาให้ได้มากที่สุด หรือวิธีการปรับปรุงเล็กๆน้อยๆเพื่อยกระดับคุณภาพขึ้นไปอีกขั้น
Peter มีความใฝ่ฝันที่จะผลิต Turntables ในแบบที่ตัวเองชอบ และ Tom Fletcher มีอิทธิพลต่อเขามากที่สุด เขาได้ร่วมกันออกแบบ Pear Audio โดยครั้งแรกผลิตตัวต้นแบบในโรงงาน Nottingham Analogue ของ Tom จากการที่ได้ร่วมงานกันอย่างใกล้ชิดหลายปี ทั้งคู่ได้ถ่ายทอดความลับในการอกแบบและเทคโนโลยี่ต่างๆซึ่งกันและกัน ก่อนที่ Tom จะเสียชีวิต Peter ได้ตกลงใจที่จะผลิต Turntables ในอุดมคติต่อไป
ปัจจุบัน Pear Audio ผลิตด้วยมือใน สโลเวเนีย และตรวจสอบคุณภาพโดย Peter Mezek ทุกเครื่อง ก่อนส่งถึงตัวแทนจำหน่าย
RG 14 Edition Integrated Amplifier. 120 watts RMS @ 8 ohm ,Class A / AB
RG 14 MK 4 Integrated Amplifier. 110 watts RMS @ 8 ohm ,Class A / AB
Vibrato CD Player. " Sounds like a very fine Tutntable "
สนใจติดต่อสอบถามข้อมูลได้ที่
Sound Box
อาคารศูนย์การค้าฟอร์จูนทาวน์ ชั้น 3
โทร.02 642 1448
092-890-4660
Line ID : tsoundbox http://www.soundboxthai.com
(27/02/2559 19:16:57)
โพสต์ที่ 17

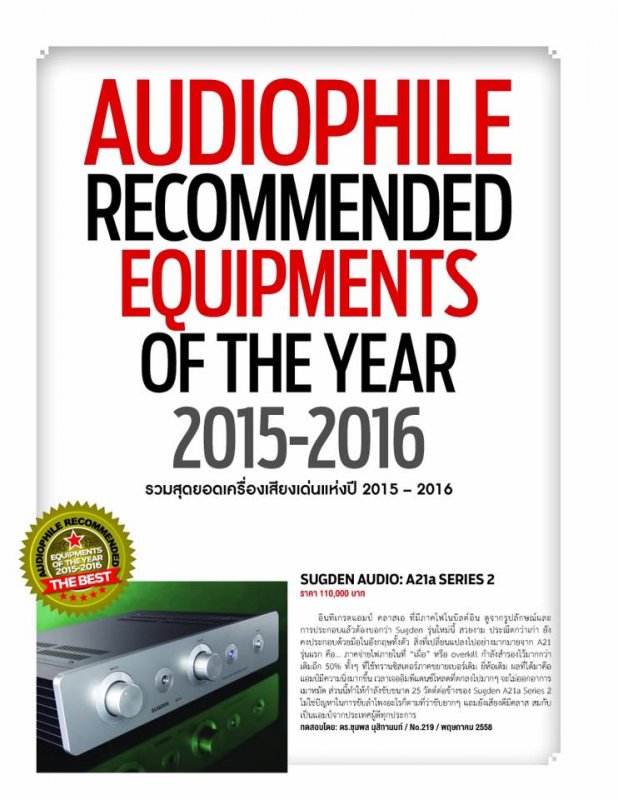

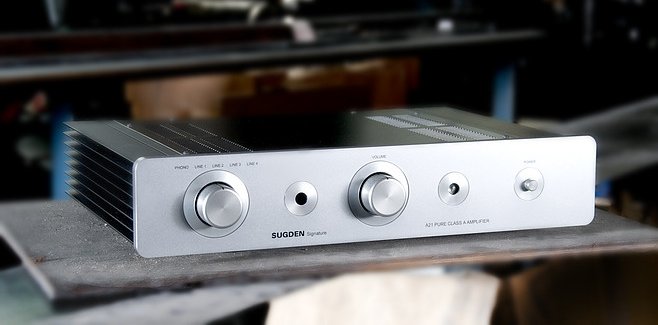

Sugden : A21a Integrated Amplifier
Sugden ได้ออกแบบวงจร Pure Class “A” Single End คุณภาพระดับ Hi-End ไว้ในตัวเครื่องขนาดเล็ก ที่ดูเรียบง่าย แต่มีสไตล์
A21a Specification
Inputs ………………………..Five line level (four on A21 Integrated) optional mm/mc phono
Outputs………………..…..Pre-out (variable), tape out (fixed) One pair of stereo multi-way binding posts
Line Input sensitivity……....170mV for max. out
Phono input sensitivity ….3mV/mm, 0.2mV/mc for max. output
Phono Loading ………..MM 47K MC 100 Ohm
Power output……………Pure Class A Single End 23 Watts into 8 Ohms
Frequency response………+/-1dB 10Hz-20kHz
Bandwidth ………………6Hz-200kHz
Signal to noise …………….>83dB
Weight (packed)………………….11kgs
Dimensions ……………….……..92 x 430 x 350mm

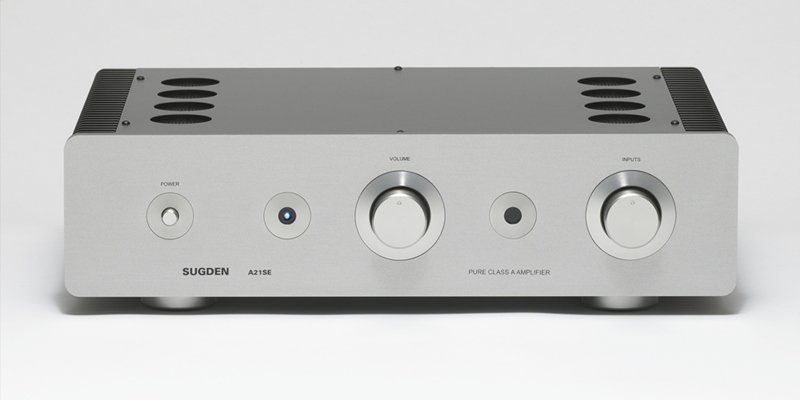

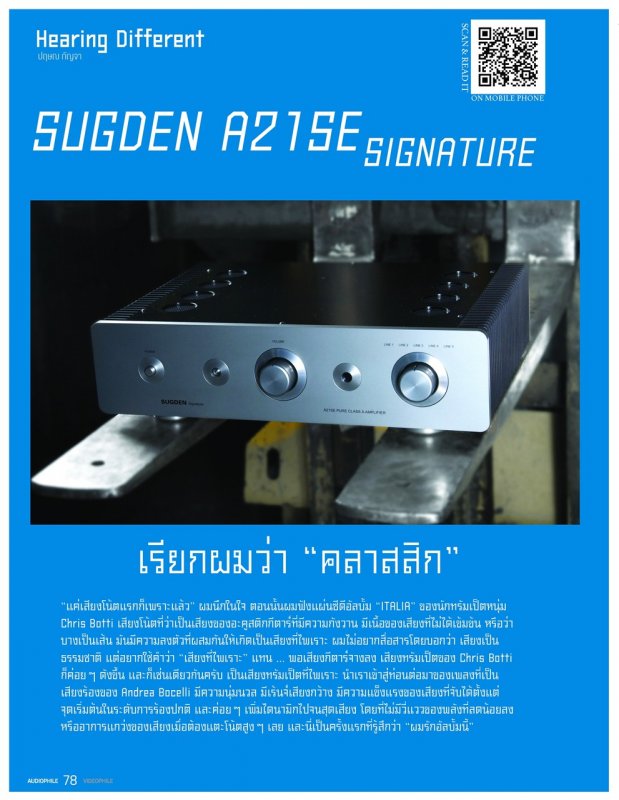

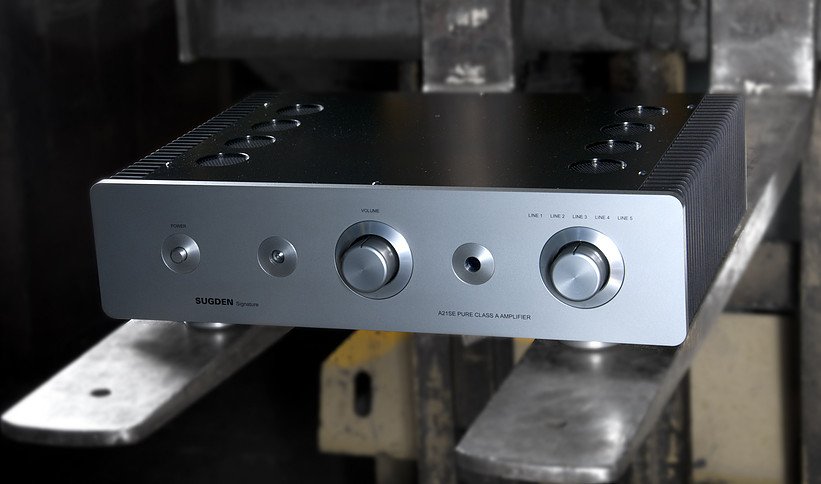

เป็นรุ่น Special Edition ของรุ่นคลาสสิค A21 ให้มีสมรรถนะที่สูงขึ้น ใช้ภาคจ่ายไฟที่ใหญ่ขึ้น ให้กำลังขับที่สูงขึ้น
A21SE Specification
Inputs ……………………….. Five line level operated by relays
Outputs………………..…..Pre-out (variable), tape out (fixed)
Line Input sensitivity…….... 110mV @ zero attenuation for full output
Power outpu…………… 30 Watts into 8 Ohms both channels working
40 Watts into 4 Ohms both channels working
Frequency response……… +/-1dB 12Hz-141kHz
Bandwidth ……………………… 6Hz-280kHz
Signal to noise ………….……….>90dB
Weight (packed)………………….15kgs
Dimensions ……………….…….. 115 x 430 x 360mm
Analogue inputs Four line level inputs, one balanced input, bypass
Digital inputs Three SPDIF coax, two SPDIF optical, one USB type B Word length up to 24bit 96k
Outputs Two line level outputs, one balanced output,
tape output
Input sensitivity 120mV for 1 Volt out
Frequency response 0dB 15Hz – 98kHz
Bandwidth 8Hz – 125khz
Signal to noise >85dB
Distortion <0.05% @ 1kHz, 1Volt out
Nett Weight 10 kgs
Dimensions 120 x 430 x 340mm
Sugden : Sapphire FBA-800 Pure Class “A” Power Amplifier
Inputs Stereo line level, stereo balanced
Outputs Stereo pair multi way locking binding posts
Front panel gain selector 6dB input attenuation
Front Panel input selector RCA or XLR
Input sensitivity 735mV for full output
Power output 40 Watts into 8 ohms both channels working
Frequency response 0dB 20Hz - 80kHz
Bandwidth 6Hz - 113kHz
Signal to noise >96dB
Distortion at 1 Watt,1 kHz >0.05%
Net weight 25kgs
Dimensions 206 x 430 x 460mm

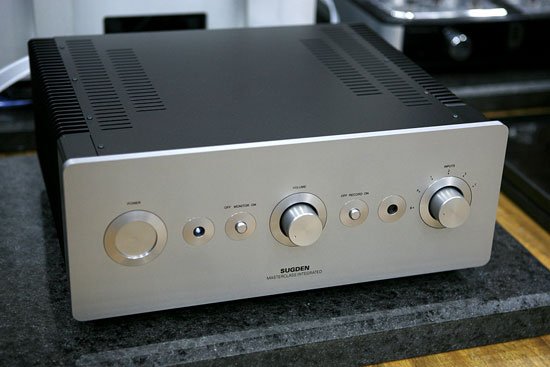

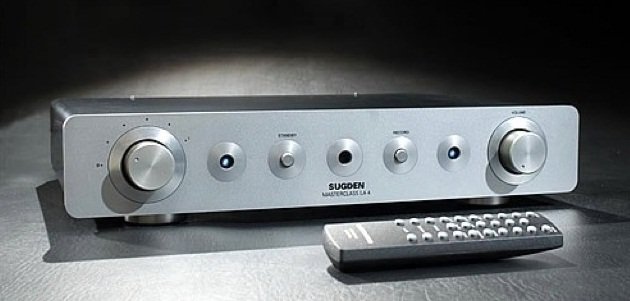

Sugden : Masterclass IA-4 Integrated Amplifier
อินทิเกรตแอมป์ Pure Class “A” Single End รุ่นเรือธง ของ Sugden ที่ผลิตขึ้นมาจากความเชี่ยวชาญและประสบการณ์อันยาวนานของการทำวงจร Pure Class A Single End ซึ่งถือว่าเป็นวงจรที่ให้ความเป็นดนตรีสูงและเป็นธรรมชาติมากที่สุด
Inputs Three line level, tape, MM phono, balanced
Outputs Variable pre-out, fixed out, loudspeaker out
Tape Monitor and record off
Line Input sensitivity 125mV
Phono input Sensitivity 2mV (MM)
Power output Pure Class A Single End 33 Watts per channel
Frequency response +/-1dB 14Hz-200kHz
Bandwidth 6Hz-300kHz
Signal to Noise 84dB
Gross Weight 20kgs
Dimensions 165 x 430 x 440

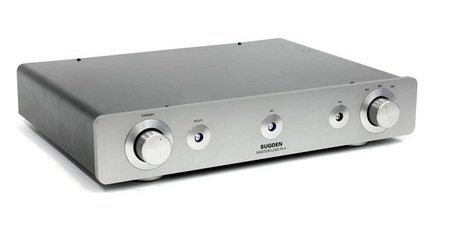

ปรีแอมป์คุณภาพสูงที่ Sugden ตั้งใจผลิตขึ้นมาเพื่อจับคู่กับ Power Amplifier ในตระกูล Masterclass ซึ่งเป็นตระกูลสูงสุด
การออกแบบที่เน้นเป็นวงจร Pure Class “ A “ จึงให้คุณภาพเสียงที่มีความเป็นธรรมชาติและมีความเป็นดนตรีสูง
Inputs Four line level inputs, one tape input, one balanced input, bypass input
Outputs Two line level outputs, fixed tape output, balanced output
Input sensitivity 100mV for 1 Volt out
Maximum output 10 Volts
Frequency response +/-0.1dB 15Hz - 30kHz
Bandwidth 6Hz-300kHz
Signal to noise >90dB
Distortion <0.006% @ 1kHz, 1Volt out
Gross Weight 7 kgs
Dimensions 75 x 430 x 350mm
สนใจติดต่อ Sound Box
อาคารศูนย์การค้าฟอร์จูนทาวน์ ชั้น 3 โทร.02 642 1448
092-890-4660
Line ID : tsoundbox http://www.soundboxthai.com
(18/04/2559 15:08:20)
โพสต์ที่ 23
Sugden : Masterclass MPA-4 Balanced Mono Power Amplifier
& SPA-4 Balanced Stereo Power Amplifier
Power Amplifier ตระกูล Masterclass คือตระกูลสูงสุดของ Sugden การออกแบบที่เน้นเป็นวงจร Pure Class “ A “ Single End จึงให้คุณภาพเสียงที่มีความเป็นธรรมชาติและมีความเป็นดนตรีสูง
MPA-4 Mono Block Power Amplifier Specification
Inputs Mono balanced
Outputs Single pair multi way locking binding posts
Input sensitivity 1Volt for full output
Power output 165 Watts into 8 ohms both channels working
Frequency response +/-0dB 15Hz-30kHz
Bandwidth -3dB points 2Hz-200kHz
Signal to noise >85dB
Nett weight 25kgs x 2
Dimensions 50 x 430 x 360mm
SPA-4 Balanced Stereo Power Amplifier Specification
Inputs Stereo line level, stereo balanced
Outputs Stereo pair multi way locking binding posts
Input sensitivity 1Volt for full output
Power output 75Watts
Frequency response +/-0dB 15Hz-30kHz
Bandwidth -3dB points 2Hz-200kHz
Signal to noise >85dB
Nett weight 25kgs
Dimensions 50 x 430 x 360mm
สนใจติดต่อ Sound Box
อาคารศูนย์การค้าฟอร์จูนทาวน์ ชั้น 3 โทร.02 642 1448
092-890-4660
Line ID : tsoundbox http://www.soundboxthai.com
(18/04/2559 15:09:13)
โพสต์ที่ 24

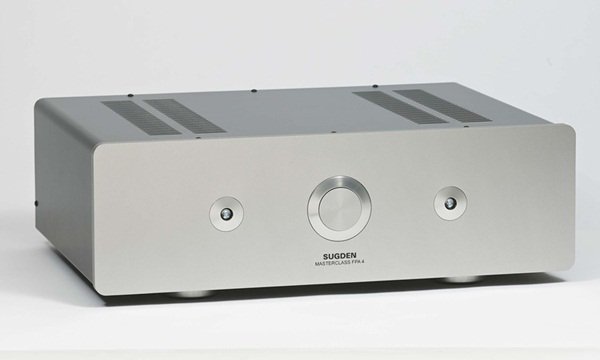

Sugden : Masterclass FPA-4 Power Amplifier
Power Amplifier ตระกูล Masterclass คือตระกูลสูงสุดของ Sugden การออกแบบที่เน้นเป็นวงจร Pure Class “ A “ Single End จึงให้คุณภาพเสียงที่มีความเป็นธรรมชาติและมีความเป็นดนตรีสูง
Inputs Stereo line level, stereo balanced
Outputs Stereo pair multi way locking binding posts
Input sensitivity 1Volt for full output
Power output 25Watts
Frequency response -0.3dB 18Hz to 95kHz
Bandwidth 10Hz to 125kHz
Signal to noise >82dB
Nett weight 15kgs
Dimensions 143 x 430 x 350mm

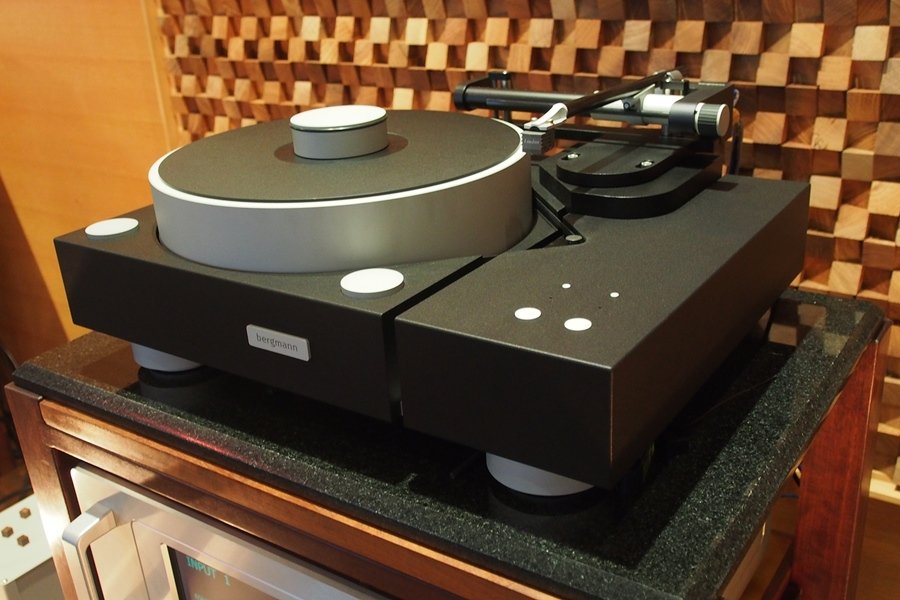

Bergmann Audio : Sleipner System
Analogue Airbearing Technology
Technical specifications
Turntable
Airbearing design.
Vacuum hold down or clamp.
High precision digital controlled DC motor. Beltdriven.
Plinth : Outer layer in 12mm Polyvinyl. Painted and handpolished.
Inner part is a 6 layer sandwich construction, in different materials for optimum resonance control:.
Platter/Bearing
Aluminium platter supported and centred by air.
Bearing/airsupply creates a thin airfilm, both vertical and horizontal, between platter and bearing - no mechanical noise - no friction.
Platter weight: 9,2kg.
Record Mat
21mm, 3 layer construction:
2 layers of polycarbonate.
1 layer of acryllic.
Feet : Adjustable feet. Aluminium/ceraball construction.
Dimensions 440 x 495 x 230 (D x W x H).
Total weight 39.8 kg.
Tonearm
Linear tracking airbearing Tonearm.
Carbon armtube and headshell, moulded in one piece, for optimum stiffness.
Armtube damped inside.
Counter weight decoupled from armtube.
Adjustments: VTA, overhang, leveling.
Wire: Internal wire in pure silver.
Clips: Silver plated copper.
Connectors: ACR, XLR, DIN.
Effective mass: 11 gr.
Motorcontrol
High precision digital controlled DC motor, with hallsensor and encoder.
Supported by a very stable and oversized power supply.
33 & 45rpm. Finetuning by microprocessor controlled pushbuttons.
Dimensions 440 x 99 x 105 (D x W x H)
Weight 3.6 kg.
Airsupply
Lowpressure design.
Silent, clean, dry and smooth airflow.
Easy accessible dust filter, for easy cleaning and replacement.
Dimensions 440 x 226 x 232 (D x W x H)
Weight 17.2 kg.
สนใจติดต่อสอลถามข้อมูลได้ที่ Sound Box
อาคารศูนย์การค้าฟอร์จูนทาวน์ ชั้น 3 โทร.02 642 1448
092-890-4660
Line ID : tsoundbox http://www.soundboxthai.com
(28/04/2559 20:07:12)
โพสต์ที่ 28

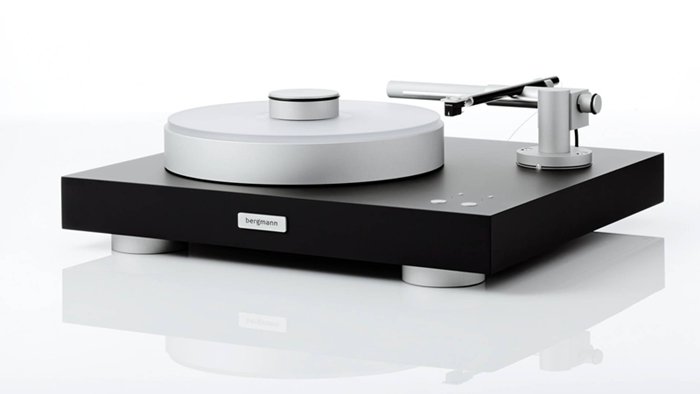

Bergmann Audio : Magne System
Analogue Airbearing Technology
Technical specifications
Turntable
Airbearing design.
Record flatten by a puck.
DC motor. Beltdriven.
Plinth: Solid high density composite material.
Platter/Bearing: Aluminium platter/Polycarbonate mat, floats on air.
Centred by steel spindel/hardweared low friction polymer bearing.
Platter weight: 5.5 kg.
Subplatter: Aluminium
Weight: 1.5kg.
Dimensions 440 x 495 x 165 (D x W x H)
Total weight: 18,5 kg.

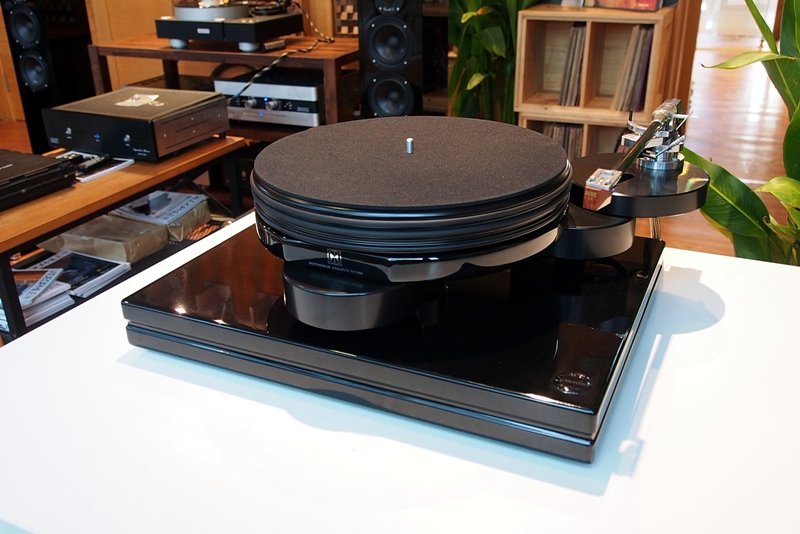

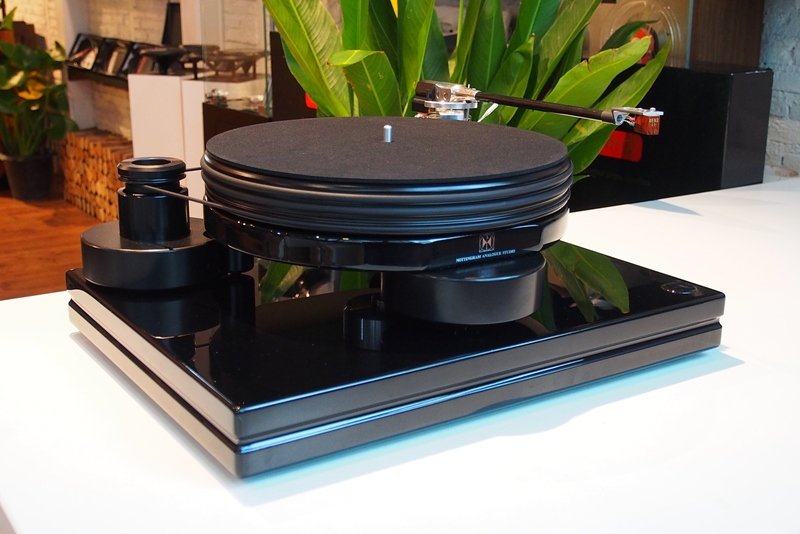

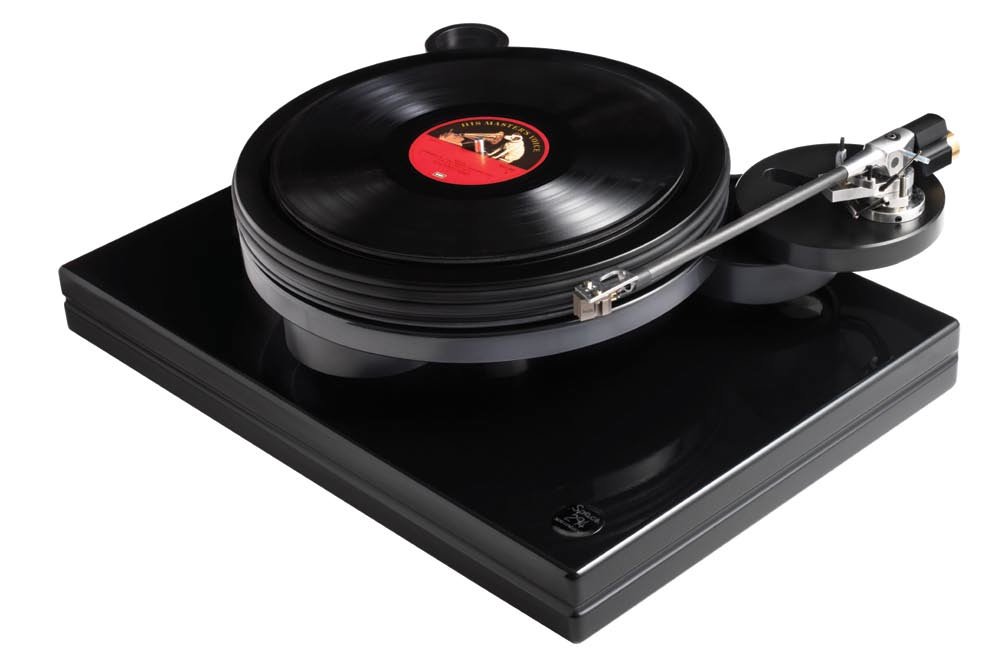

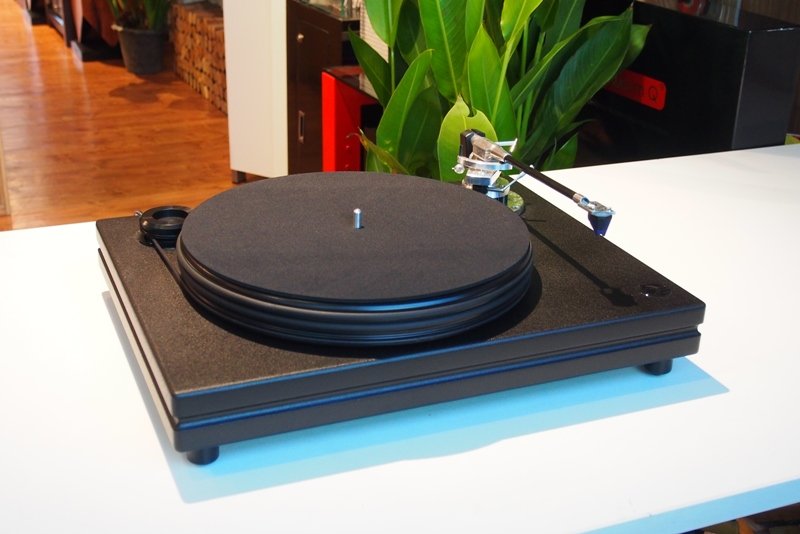

4-arm turntable. Airbearing design.
Galder is Bergmann`s answer to the most universal turntable design. Galder accept up to 4 tonearms. Radial- and linear tracking arms.
Output for an airbearing tonearm.
Motorbase seperated from the plinth.
The name Galder
In the Nordic Mythology, Galder means to enchant. A craft consisting of magic songs and spells.
A master of practice Galder craft, was said to be able to raise storms, make distant ships sink, make swords blunt, make armour decide victory or defeat in battles. Odin, a master of magic, was a God with great abilities to "Galdre".
Technical specifications
Turntable
Airbearing design.
Vacuum hold down, or clamp.
Accapt up to 4 tonearms. All tonearm designs, radil - and linear tracking.
Output for an airbearing tonearm.
Plinth:
Black anodized die cast aluminium.
Platter/Bearing:
Aluminium platter floats on air. 3mm acrillic mat.
Centred by steel spindel/hardweared low friction polymer bearing.
Sugden ได้ออกแบบวงจร Pure Class “A” Single End คุณภาพระดับ Hi-End ไว้ในตัวเครื่องขนาดเล็ก ที่ดูเรียบง่าย แต่มีสไตล์
A21 Signature Specification
Inputs …………..Five line level (four on A21 Integrated) optional mm/mc phono
Outputs………..Pre-out (variable), tape out (fixed) One pair of stereo multi-way binding posts
Line Input sensitivity……....170mV for max. out
Phono input sensitivity ….3mV/mm, 0.2mV/mc for max. output
Phono Loading ……..MM 47K MC 100 Ohm
Power outpu…………25 Watts into 8 Ohms
Frequency response………+/-1dB 10Hz-20kHz
Bandwidth ……………6Hz-200kHz
Signal to noise ………….>83dB
Weight (packed)………………….11kgs
Dimensions …………..92 x 430 x 350mm
Sugden : A21 Signature ราคา 110,000 บาท
สนใจติดต่อ Sound Box
อาคารศูนย์การค้าฟอร์จูนทาวน์ ชั้น 3
092-890-4660
Line ID : tsoundbox http://www.soundboxthai.com
จะมาสร้างมาตรฐานใหม่ ให้วงการ Integrated Hi-End A21SE Signature ได้ปรับปรุงครั้งแล้วครั้งเล่าเป็นเวลานานกว่า 50ปี
โดยใช้พื้นฐานวงจรเดิมเป็นแบบ Single end class "A" แท้ๆของ Sugden ที่มีความชำนาญเป็นอย่างดี
สำหรับ A21SE รุ่นใหม่ล่าสุดจะมีคำว่า Signature ต่อท้ายถึงแม้จะมีกำลัง 30w เท่ากับรุ่น A 21SE รุ่นก่อนหน้า
แต่ก็ได้ปรับปรุงด้าน Power supply ใหม่จำนวนหลายจุดเพื่อให้ได้เสียงที่ผ่อนคลาย
มีจังหวะและรายละเอียดต่างๆมากกว่าเดิมเมื่อเทียบกับรุ่น SE ธรรมดา
และ Sugden A21 Integrated ยังได้ถูกโหวดให้เป็น Integrated Amp คลาสสิกตลอดกาล โดยหนังสือชั้นนำของยุโรปหลายฉบับ
นี่ถือเป็นความภาคภูมิใจของ Sugden และในปัจจุบันก็ถือได้ว่า A21SE Signature ได้มีการปรับปรุงแก้ไข Integrated ระดับตำนานรุ่นนี้ได้ลงตัวที่สุด
A21SE Signature Specification
Line Input sensitivity ……………….. 110mV @ zero attenuation for full output
Power output ………………………… 30 Watts into 8 Ohms both channels working
……………………………………………………40 Watts into 4 Ohms both channels working
Frequency response ……………… +/-1dB 12Hz-141kHz
Bandwidth ………………………………. 6Hz-280kHz
Signal to noise …………………………. >90dB
Packed weight ……………………….. 15kgs
Dimensions …………………………….115 x 430 x 360mm
A21SE Signature ราคา 160,000บาท
สนใจติดต่อสอบถามข้อมูลได้ที่ Sound Box
ศูนย์การค้าฟอร์จูนทาวน์ ชั้น 3
Tel : 092-890-4660
Line ID : tsoundbox http://www.soundboxthai.com
(12/03/2560 21:41:10)
โพสต์ที่ 38
บทความจากคอลั้มน์ Hearing Different จากนิตยสาร Audiophile /No.235 / September 2016
ทดสอบ Sugden : A21SE Signature โดย คุณ ปฤษณ กัญจา
ต่อมาได้รับรางวัล “The Best” Audiophile Recommended Equipments of The Year 2016-2017 ในฉบับ No.239 / January 2017 ครับ

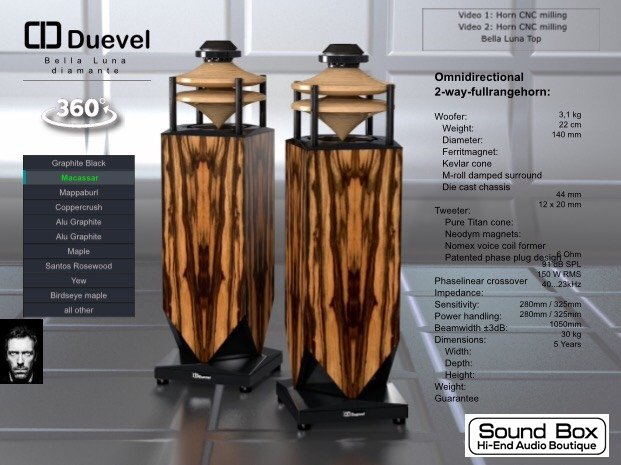

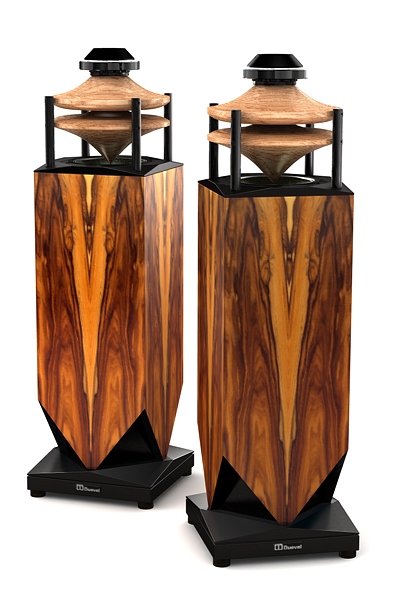

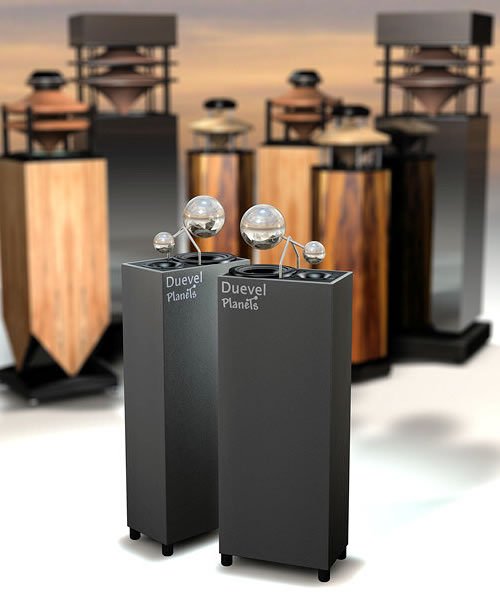

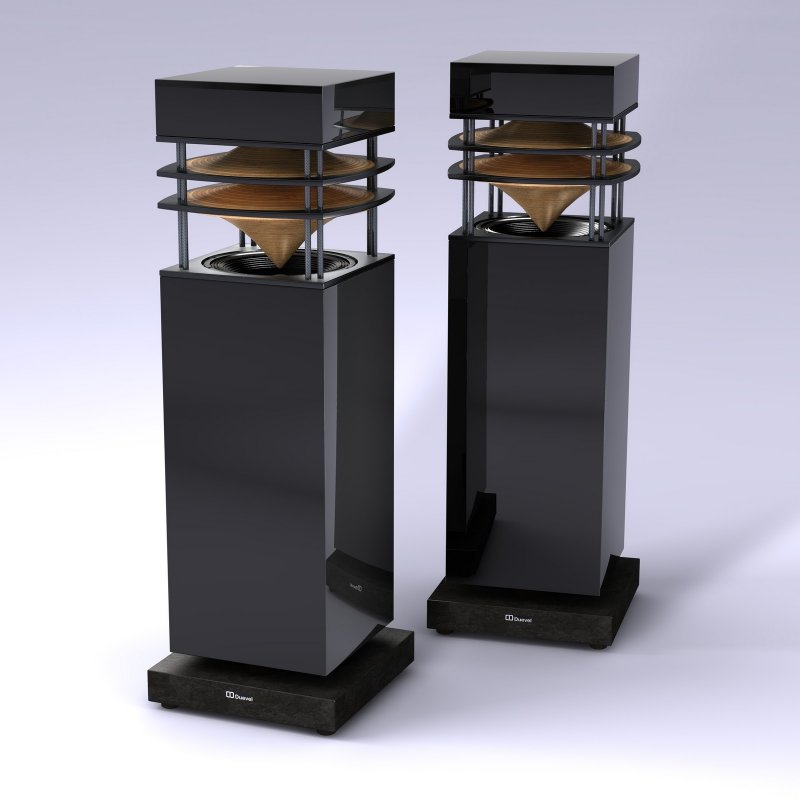

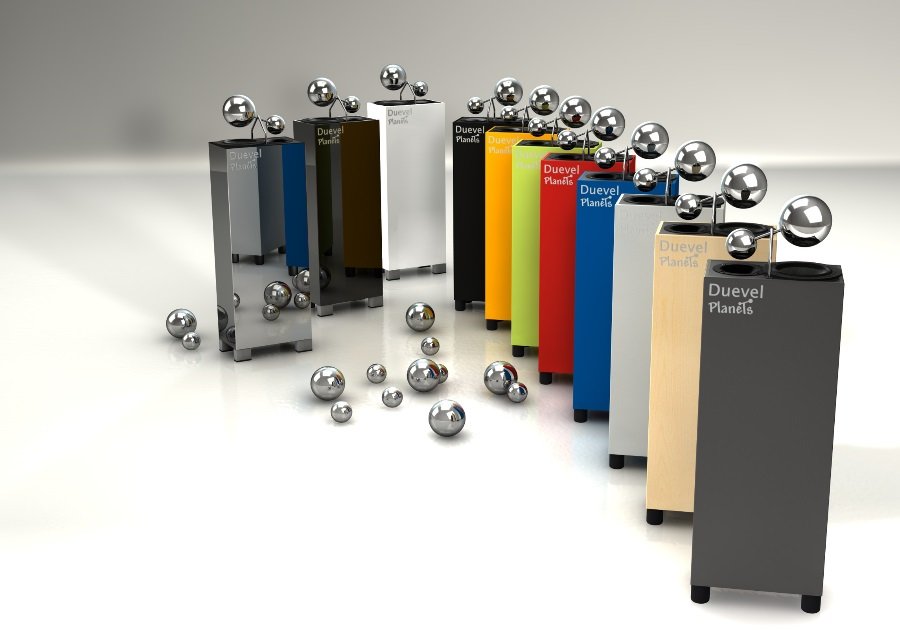

Duevel : Omnidirectional High End Loudspeakers made in Germany

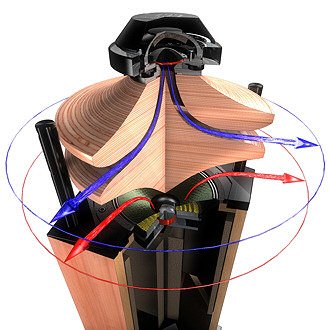

“the only one high-end hornspeakers with a perfect omnidirectional character, like the acoustical ideal of a point source, additional with excellent frequency and phase responces and a high efficiency, which guarantees a new quality of natural music reproduction. “
Tweeter
Weight:……………….…….. 3,6 kg.
Diameter:………………….. 131 mm.
Voice Coil Diameter:…. 75 mm.
Neodymium ring magnet:…. 130 mm.
Die cast chassis
Nomex voice coil former
Composite nitride-titanium diaphragm
Woofer
Weight:…………..………………. 6,2 kg.
Diameter:………………………… 315 mm.
Voice Coil Diameter:……….. 100 mm.
16 Neodymium magnets:…. 26 mm.
External neodymium magnet assembly
Die cast chassis
Exclusive Carbon fibre reinforced straight ribbed cone
Double Demodulating Rings (DDR)
Phaselinear crossover
Impedance:…………………….. 6 Ohm
Sensitivity:………………………. 93 dB SPL
Power handling:………………. 400 W RMS
Beamwidth ±3dB:……………. 30…23 kHz
Dimensions
Width:…… 360 mm.
Depth:….. 360 mm.
Height:….. 1400 mm.
Weight:…. 75 kg.
---------------------
ทดลองฟังได้แล้วครับ
ติดต่อที่ร้าน Sound Box อาคารศูนย์การค้าฟอร์จูนทาวน์ ชั้น 3
โทร.02 642 1448
ธงชัย : 092-890-4660 , Line ID : tsoundbox
โมทย์ : 094-124-2732 , Line ID : m.soundbox
(18/03/2561 14:38:30)
โพสต์ที่ 49
ลำโพงแบรนด์ใหม่ Russell K. จากอังกฤษ
(19/03/2561 22:31:16)
โพสต์ที่ 50
ลำโพง Russell K.จากประเทศอังกฤษ
Russell K : Red 50 : Precision Audio Loudspeaker System
Designed in the UK
--------------
Cabinet
Dimensions H- 310mm W-205mm D-200mm
Construction 16mm MDF all sides apart from front baffle which is 19mm.
Totally undamped cabinet
1 acoustic loading bracing shelf with multiple (8) apertures mounted above the woofer
Reflex port loading tuned to 55Hz
---------------
Drive units
5” Bass unit with impregnated paper cone and curved optimised acoustic profile
High power Ferrite magnet driving a 25mm voice coil with aluminium former and Faraday distortion cancelling copper ring
25mm soft dome tweeter
Single Ferrite magnet system
Copper Clad Aluminium voice coil wire on a Fibreglass Former and Faraday distortion cancelling copper ring
--------------
Crossover
Drivers connected in positive phase crossover frequency 2200Hz nominal 12 db/Oct
Bass Inductor “Enclosed Field Ferrite Core” Very low DCR nominal stray fields
Tweeter attenuation by misaligned Zobel network as opposed to conventional L-Pad
Both Drivers have only one component in the signal path
Phase optimised through the crossover region
In room frequency range 45Hz-22 KHz
----------------
สอบถามข้อมูลที่ Sound Box อาคารศูนย์การค้าฟอร์จูนทาวน์ ชั้น 3
โทร.02 642 1448
มือถือ. ธงชัย : 092-890-4660 , Line ID : tsoundbox
โมทย์ : 094-124-2732 , Line ID : m.soundbox
(05/05/2561 18:55:10)
โพสต์ที่ 51
ลำโพง Russell K.จากประเทศอังกฤษ
Russell K Red 100
Precision Audio Loudspeaker System
Designed in the UK
-------------------------
Cabinet
Dimensions H- 400mm W-260mm D-270mm
Construction 16mm MDF all sides apart from front baffle which is 19mm.
Totally undamped cabinet
2 acoustic loading bracing shelves with multiple apertures mounted above and below the woofer
Reflex port loading tuned to 35Hz
-------------------
Drive units
6.5” Bass unit with impregnated paper cone and curved optimised acoustic profile
High power Ferrite magnet driving a 25mm voice coil with aluminium former and Faraday distortion cancelling copper ring
25mm soft dome tweeter
Double Ferrite magnet system
Copper Clad Aluminium voice coil wire on a Fibreglass Former and Faraday distortion cancelling copper ring
------------------
Crossover
Drivers connected in positive phase, crossover frequency 2200Hz nominal 12 db/Oct
Bass Inductor “Enclosed Field Ferrite Core” Very low DCR nominal stray fields
Tweeter attenuation by misaligned Zobel network as opposed to conventional L-Pad
Both Drivers have only one component in the signal path
Phase optimised through the crossover region
In room frequency range 30Hz-20KHz
-------------------
มือถือ. ธงชัย : 092-890-4660 , Line ID : tsoundbox
โมทย์ : 094-124-2732 , Line ID : m.soundbox
(09/05/2561 16:20:24)
โพสต์ที่ 52
Russell K Red 150 ลายไม้ Walnut
Precision Audio Loudspeaker System
Designed in the UK
-------------
Cabinet
Dimensions H- 950mm (1000mm including plinth, base and spikes) W-240mm D-250mm
Construction 16mm MDF all sides apart from front baffle which is 19mm.
Totally undamped cabinet
3 acoustic loading bracing shelves with multiple apertures, mounted below the tweeter, below the bass mid driver and below the sub bass driver
1 bracing shelf mounted near the bottom of the enclosure containing an internal port
Internal port vents into a small chamber containing 2 asymmetric length reflex ports tuned as a system to 21Hz
---------------
Drive units
2 x 6.5” Bass units with impregnated paper cone and curved optimised acoustic profile
High power Ferrite magnet driving a 25mm voice coil with aluminium former and Faraday distortion cancelling copper ring
25mm soft dome tweeter
Double Ferrite magnet system
Copper Clad Aluminium voice coil wire on a Fibreglass Former and Faraday distortion cancelling copper ring
--------------
Crossover
All drivers connected in positive phase
Sub bass driver starts roll off at 80Hz 6db/Oct fed by “Enclosed Field Iron Core Inductor”. Features high power without saturation, very low DCR and almost no stray magnetic field
Bass/Mid driver crossover frequency 2200Hz nominal 12 db/Oct. Utilises an “Enclosed Field Ferrite Core Inductor “in the signal path. Very low DCR nominal stray fields
Tweeter attenuation by misaligned Zobel network as opposed to conventional L-Pad
All Drivers have only one component in the signal path
Phase optimised through the crossover region
In room usable frequency response 20Hz-22KHz (dependent on room)
Sensitivity: 87db 1 watt 1 Metre
----------------------------------------

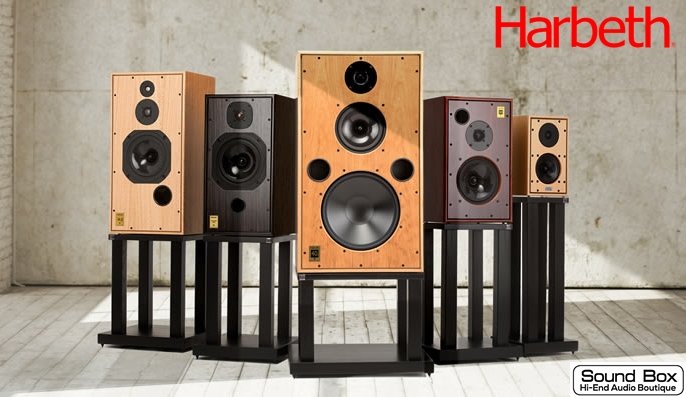

ลำโพง Harbeth ทุกรุ่น ผลิตอย่างปราณีตประกอบด้วยมือในประเทศอังกฤษทุกคู่ (Handmade in England) จึงเป็นลำโพงที่ทรงคุณค่าและน่าครอบครองยิ่งนัก
------------------
Specifications
Transducer system : 110mm Harbeth RADIAL 2 bass/midrange; 19mm ferro-cooled tweeter
Frequency response : 75Hz - 20kHz (+-3dB) free-space, grille on, smooth off-axis response
Impedance: 6 ohms , easy to drive.
Sensitivity: 83.5dB/1W/1m
Amplifier suggestion: Works with a wide range of amplifiers, suggested from 15W/channel.
Power handling: 50W programme
Connectors: Two 4mm gold-plated binding posts for wires or plugs
Dimensions: 306 x 190 x 184 mm (+12mm for grille and binding posts)
Finish: Cherry, Black ash, Maple, Rosewood, Eucalyptus
Space needs: Ideally > 0.30m from rear wall
Stands: Optimally to bring ears level with tweeters. (Tweeter: 230mm up from cabinet base)
Weight: 6.1kg each (without packing)
Packing: One matched pair per protective carton
------------------------
P3ESR
ลำโพง Harbeth ทุกรุ่น ผลิตอย่างปราณีตประกอบด้วยมือในประเทศอังกฤษทุกคู่ (Handmade in England) จึงเป็นลำโพงที่ทรงคุณค่าและน่าครอบครองยิ่งนัก
------------------
Specifications
Transducer system: 2 way vented, 200mm Harbeth RADIAL 2 bass/mid; 25mm ferro-cooled tweeter
Frequency response: 45Hz - 20kHz (+-3dB) free-space, grille on, smooth off-axis response
Impedance: 6 ohms , easy to drive
Sensitivity: 86dB/1W/1m
Amplifier suggestion: Works with a wide range of amplifiers, suggested from 25W/channel
Power handling: 150W programme
Connectors: Two 4mm gold-plated binding posts for wires or plugs
Dimensions: 520 x 272 x 305mm (+12mm for grille and binding posts)
Finish: Black ash , Eucalyptus , Rosewood, Tiger ebony.
Space needs: Overall response optimised for use away from walls.
Stands: Optimally to bring ears level with tweeters. (Tweeter: 440mm up from cabinet base)
Weight: 13.2kg each, excl. packing
Packing: Single speaker per protective carton
------------------
ลำโพง Harbeth ทุกรุ่น ผลิตอย่างปราณีตประกอบด้วยมือในประเทศอังกฤษทุกคู่ (Handmade in England) จึงเป็นลำโพงที่ทรงคุณค่าและน่าครอบครองยิ่งนัก
------------------
Specifications
Transducer system: 200mm Harbeth RADIAL 2 bass/midrange; 25mm ferr-cooled soft dome tweeter
Frequency response : 50Hz - 20kHz (+/-3dB), free-space, grille on, smooth off-axis response
Impedance: 6 ohms , easy to drive
Sensitivity: 85dB/1W/1m
Amplifier suggestion: Works with a wide range of amplifiers - suggested from 25W
Power handling: 150W programme
Connectors: Two 4mm gold-plated binding posts
Dimensions: 460 x 277 x 275mm (+12mm for grille and binding posts)
Finish: Black ash, Eucalyptus, Rosewood, Tiger ebony
Space needs: Overall response optimised for use away from walls.
Stands: Optimally to bring ears level with tweeters. (Tweeter: 320mm up from cabinet base)
Weight: 11.6kg each without packing
Packing: Single speaker per protective carton
------------------
สอบถามข้อมูลเพิ่มเติมที่ ร้าน Sound Box ศูนย์การค้าฟอร์จูนทาวน์ ชั้น 3
ธงชัย: 092-890-4660 , Line ID: tsoundbox
โมทย์: 094-124-2732 , Line ID: m.soundbox
SHL 5 plus ให้ได้รับการถ่ายทอดเสียงที่ดีและเป็นธรรมชาติที่สุดจาก RADIAL 2 โดยภายในตัวตู้ได้รับการออกแบบมาอย่างพิถีพิถันตามการวิจัยและการวัดมาตรฐานโดย BBC ให้มีมวลเสียงขนาดใหญ่ โปร่งใสและมีความสด สมจริง จึงไม่ต้องสงสัยเลยว่าทำไม SHL 5 plus ถึงกลายเป็นตำนานระดับโลกและเป็นลำโพงในฝันของนักเล่นนักฟังหลายๆคนเลยทีเดียว
Super Tweeter ช่วยเติมเต็มเสียงย่านบนให้มีรายละเอียดที่ดีขึ้น และลำโพง Super HL 5 plus สามารถสร้างเวทีเสียงขนาดใหญ่ ให้มีความกว้างความลึกและน้ำหนักเสียงให้มีอรรถรสเข้าถึงอารมณ์ ละกลิ่นอายของการฟังเพลงได้อย่างง่ายดาย เป็นลำโพงที่นักเล่นนักฟังทุกท่านต้องมีไว้ครอบครองอย่างแน่นอนที่สุด
ลำโพง Harbeth ทุกรุ่น ผลิตอย่างปราณีตประกอบด้วยมือในประเทศอังกฤษทุกคู่ (Handmade in England) จึงเป็นลำโพงที่ทรงคุณค่าและน่าครอบครองยิ่งนัก
-----------------
Transducer system : 3-way vented: 200mm Harbeth RADIAL 2 bass/mid; 25mm ferro-cooled done tweeter, 20mm dome SuperTweeter
Frequency response : 40Hz - 20kHz (+/-3dB) free-space, grille on, smooth off-axis response
Impedance : 6 ohms, easy to drive
Sensitivity : 86dB/1W/1m
Amplifier suggestion : Works with a wide range of amplifiers, suggested from 25W/channel.
Power handling : 150W programme
Connectors : Four 4mm gold-plated binding posts for wires or plugs (biwireable)
Dimensions : 635 x 322 x 300mm (+12mm for grille and binding posts)
Finish : Black ash , Tiger ebony , Eucalyptus, Rosewood.
Space needs : Overall response optimised for use away from walls.
Stands : Optimally to bring ears level with tweeters: typically 16-20 inches. (Tweeter: 475mm up from cabinet base)
Weight : 15.8kg each, unpacked
Packing : Single speaker per protective carton
-----------------
ลำโพง Harbeth ทุกรุ่น ผลิตอย่างปราณีตประกอบด้วยมือในประเทศอังกฤษทุกคู่ (Handmade in England) จึงเป็นลำโพงที่ทรงคุณค่าและน่าครอบครองยิ่งนัก
-------------------------------
Specifications
Transducer system : 3-way vented: 300mm Harbeth bass unit; 200mm RADIAL 2 mid; 25mm ferro-cooled soft dome tweeter
Frequency response : 35Hz - 20kHz (+/-3dB) free-space, grille on, smooth off-axis response
Impedance : 6-8 ohms, easy to drive
Sensitivity : 86dB/1W/1m
Amplifier suggestion : Works with a wide range of amplifiers, suggested from 35W/channel.
Power handling : 650W programme
Connectors : Two 4mm gold-plated binding posts for wires or plugs
Dimensions : 750 x 432 x 388mm (+12mm for grille and binding posts)
Finish : Black ash , Eucalyptus, Rosewood, Tiger ebony.
Space needs : Ideally free-space away from walls.
Stands : Optimally to bring ears level with tweeters. (Tweeter: 660mm up from cabinet base)
Weight : 38kg each
Packing : Single speaker per protective carton
-------------------------------
