Specs
AMPLIFIER FEATURES
- 180 W/Ch at 6 Ohm, 1 kHz, 1 Channel Driven, IEC
- WRAT (Wide Range Amplifier Technology)
- Three-Stage Inverted Darlington Circuitry
- H.C.P.S. (High Current Power Supply) Massive High Power Transformer
- Linear Optimum Gain Volume Circuitry
PROCESSING FEATURES
- Burr-Brown 192 kHz/24-Bit DACs (PCM1690 and PCM1789) for All Channels
- Two 32-Bit Processing DSP Chips (DA830 and CS49834)
- PLL Jitter-Cleaning Circuit Technology
- Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, DTS-HD High-Resolution Audio Decoding
- HDMI Video Upscaling to 1080p with Faroudja DCDi Cinema
- 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
- Music Optimizer for Compressed Digital Music Files
- Direct Mode and Pure Audio Mode
- A-Form Listening Mode Memory
- Theater-Dimensional Virtual Surround Function

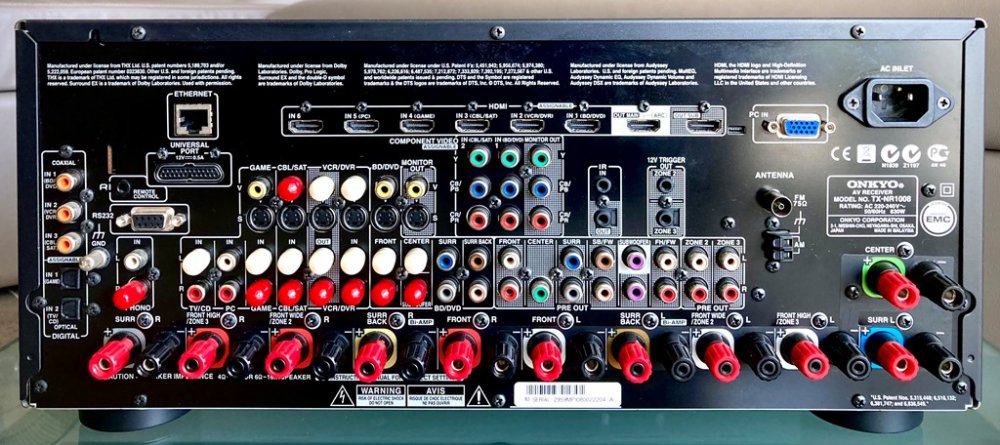

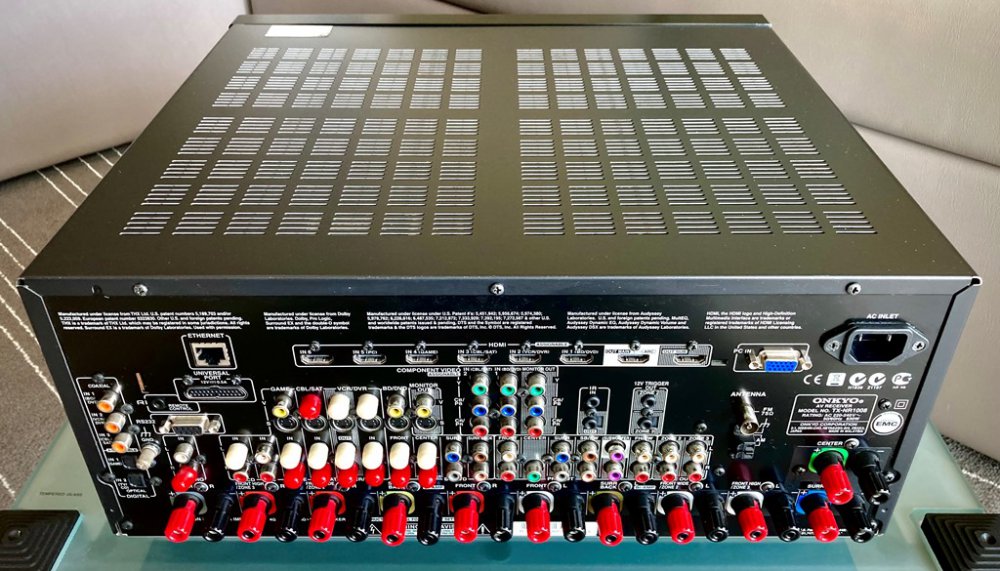

CONNECTION FEATURES
- Universal Port for Single-Cable Connection of Optional
- Onkyo Dock for iPhone/iPod or DAB+ Radio Tuner
- Component Video Switching (2 Inputs and 1 Output)
- 4 S-Video Inputs and 2 Outputs
- Analog RGB Video Input (D-sub, 15 pin) and Audio Input for PC
- 6 Digital Inputs (3 Optical and 3 Coaxial)
- 5 A/V Inputs (1 Front/4 Rear) and 1 Output
- Color-Coded, 7.1 Multichannel Inputs
- Video Output (Monitor)
- 1 Audio Input
- Phono Input
- Color-Coded, 9.2 Multichannel Pre Outs
- RS232 Port, IR (In/Out), and 12 V Trigger Outs (Zone 2/3)
- Bi-Amping Capability
- Color-Coded, Banana Plug-Compatible Speaker Posts
- RIHD (Remote Interactive over HDMI) for System Contro
OTHER FEATURES
- Audyssey MultEQ for Room Acoustic Correction
- Audyssey Dynamic EQ for Loudness Correction
- Audyssey Dynamic Volume
- Overlaid Graphical On-Screen Display (OSD) via All Video Outputs
- Crossover Adjustment (40/50/60/70/80/90/100/120/150/200 Hz)
- A/V Sync Control Function (Up to 250 ms in 5 ms Steps)
- 40 FM/AM Random Presets
- RDS (PS/RT/PTY/TP)
- Compatible with RI (Remote Interactive) Dock for iPod

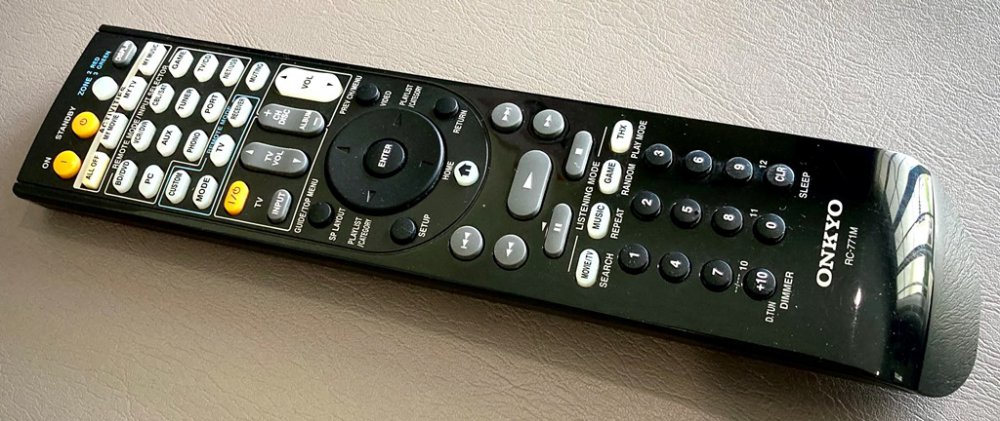

- Bi-Directional, Preprogrammed, and Customizable RI Remote
Control with On-Screen Setup, Mode-Key LEDs, and Macro Presets for Four Activities
Tuner Section
- Tuning Frequency Range : FM 87.5 MHz–108 MHz , AM 522 kHz–1,611 kHz
- FM/AM Preset Memory : 40 stations
General
- Power Supply : AC 220–240 V, 50/60 Hz
- Power Consumption : 830 W
- Dimensions (WxHxD) : 435 x 198.5 x 435.5 mm
- Weight : 18.7 kg
